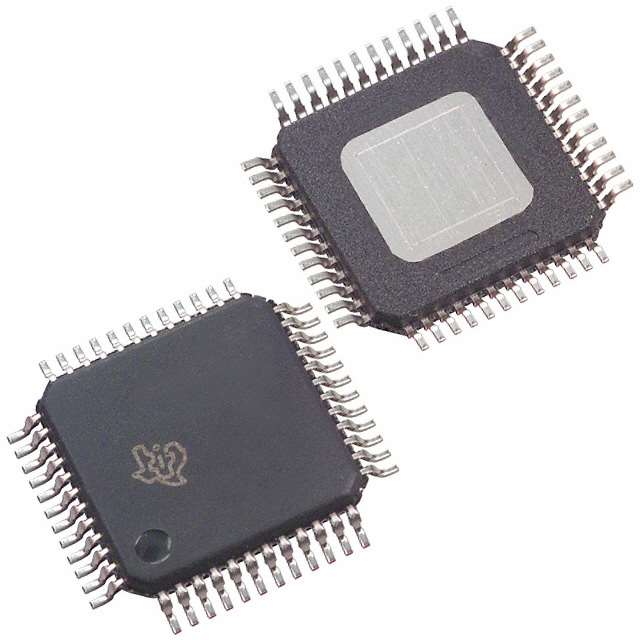

DAC5674IPHPR TI Digital-to-Analog Converter | 48-HTQFP (7x7) | 14-Bit, 400 MSPS

Product Overview

The DAC5674IPHPR is a high-performance, 14-bit digital-to-analog converter (DAC) from Texas Instruments, designed for demanding applications requiring high speed and precision. It operates at update rates up to 400 MSPS and features a differential current output with a nominal full-scale range of 20 mA. The device is housed in a compact 48-pin HTQFP package (7x7 mm) and operates from a single 3.3V supply, making it suitable for space-constrained systems. The DAC5674IPHPR integrates advanced features such as a 2x/4x/8x interpolation filter, a digital quadrature modulator, and a clock multiplier PLL, enabling direct IF synthesis and reducing system complexity.

Detailed Technical Specifications

Key Features

• 14-bit resolution with 400 MSPS update rate
• Integrated 2x/4x/8x interpolation filter
• Digital quadrature modulator for direct IF synthesis
• On-chip clock multiplier PLL with low jitter
• Differential current outputs with 20 mA full-scale
• Single 3.3V supply operation
• Low power dissipation: 1.2 W typical
• Excellent dynamic performance: 75 dBc SFDR at 100 MHz
• Compact 48-pin HTQFP package (7x7 mm)

Target Applications

• 5G base station transmitters (e.g., remote radio heads)
• Software-defined radio (SDR) systems
• Wireless infrastructure (e.g., LTE, WiMAX)
• Arbitrary waveform generators
• Medical imaging equipment (e.g., ultrasound)
• Test and measurement instruments
• Radar and electronic warfare systems
• Automotive radar and infotainment
