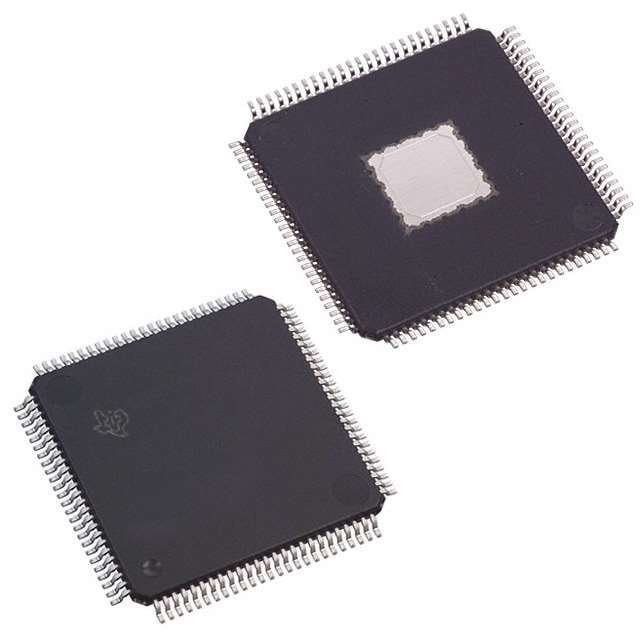

DAC5686IPZP TI Digital-to-Analog Converter | 100-HTQFP (14x14) | 16-Bit, 1.0 GSPS

Product Overview

The DAC5686IPZP is a high-performance, dual-channel, 16-bit digital-to-analog converter (DAC) from Texas Instruments, offering a maximum update rate of 1.0 GSPS. It integrates a 2x/4x/8x interpolation filter, a numerically controlled oscillator (NCO), and a clock multiplier PLL, making it ideal for demanding communication and instrumentation applications. The device operates from a single 3.3V supply and is housed in a 100-pin HTQFP (14x14 mm) package.

Detailed Technical Specifications

Key Features

• 16-bit resolution with 1.0 GSPS update rate
• Dual-channel output with independent NCO per channel
• Integrated 2x/4x/8x interpolation filters
• On-chip clock multiplier PLL
• Low power: 1.5 W typical
• Single 3.3V supply operation
• LVDS data input interface
• Internal voltage reference

Target Applications

• 5G base station transmitters (e.g., Massive MIMO)
• Software-defined radio (SDR) systems
• Arbitrary waveform generators (e.g., Keysight 33600A)
• Radar and electronic warfare systems
• Medical imaging (e.g., ultrasound beamforming)
• Test and measurement equipment
