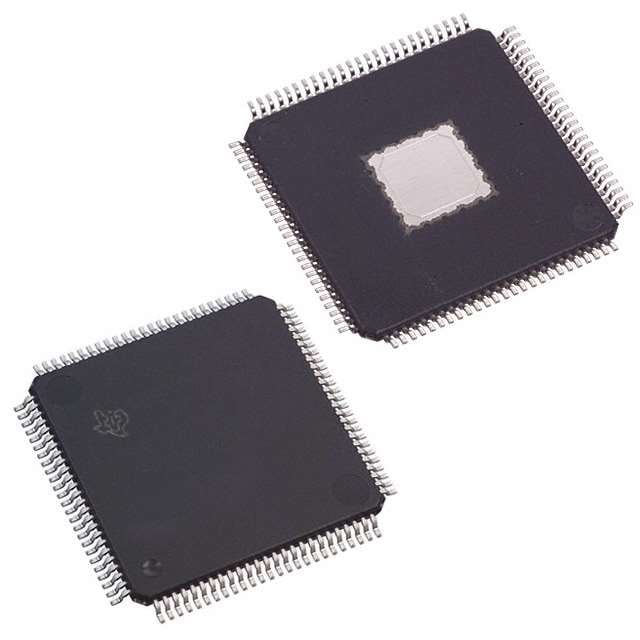

DAC5687IPZPR TI Digital-to-Analog Converter | 100-HTQFP (14x14) | 16-Bit, 800 MSPS, 2-Channel

Product Overview

The DAC5687IPZPR is a high-performance, dual-channel, 16-bit digital-to-analog converter (DAC) from Texas Instruments. It supports update rates up to 800 MSPS and is designed for demanding applications such as wireless communications, instrumentation, and radar systems. The device integrates advanced features like a 2x/4x interpolation filter, a digital quadrature modulator, and a clock multiplier PLL, enabling direct conversion architectures. Housed in a 100-pin HTQFP package (14x14 mm), it offers excellent dynamic performance with a spurious-free dynamic range (SFDR) of 78 dBc at 70 MHz output.

Detailed Technical Specifications

Key Features

• 16-bit resolution with 800 MSPS update rate
• Dual-channel operation with independent data paths
• Integrated 2x/4x interpolation filters
• Digital quadrature modulator for direct upconversion
• On-chip clock multiplier PLL with low jitter
• Excellent linearity: DNL ±1 LSB, INL ±2 LSB
• Low power: 1.5 W typical at full operation
• Small footprint: 100-pin HTQFP (14x14 mm)

Target Applications

• 5G base station transmitters (e.g., Massive MIMO, small cells)
• Software-defined radio (SDR) platforms
• Radar and electronic warfare systems
• Arbitrary waveform generators (AWG)
• Medical imaging equipment (e.g., ultrasound beamforming)
• Automotive radar and infotainment systems

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for DAC5687IPZPR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
