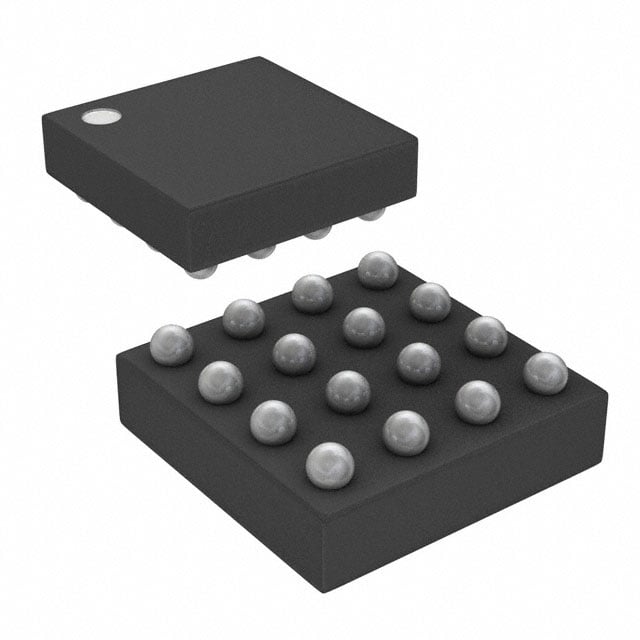

DAC60508ZYZFR TI DAC | 16-DSBGA | 8-Ch, 12-Bit, SPI, 1LSB INL

Product Overview

The DAC60508ZYZFR is a high-performance, 8-channel, 12-bit digital-to-analog converter (DAC) from Texas Instruments. It offers a low-power, small-footprint solution for precision analog output applications. The device operates from a single 2.7V to 5.5V supply and features a SPI interface for communication. With integrated internal reference and output buffers, the DAC60508 simplifies system design and reduces external component count.

Detailed Technical Specifications

Key Features

• 8-channel, 12-bit DAC with integrated output buffers
• Low power consumption: 0.5 mA per channel at 3V
• Internal 2.5V reference with 10 ppm/°C drift
• SPI interface with daisy-chain capability
• Power-on reset to zero-scale or mid-scale
• Small 16-DSBGA package (2.0mm x 2.0mm)
• Wide operating temperature range

Target Applications

• 5G base station: Control of variable gain amplifiers (VGAs) and attenuators in RF front-end modules
• Automotive dashboard: Precision voltage references for instrument cluster displays and HUDs
• Industrial automation: Analog output modules for PLCs and DCS systems
• Medical equipment: Programmable current/voltage sources for patient monitoring
• Test and measurement: Multi-channel arbitrary waveform generation

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for DAC60508ZYZFR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

DAC60508ZYZFR 是一款高性能、8通道、12位數字模擬轉換器（DAC），來自德州儀器。它提供低功耗、小尺寸的精確模擬輸出解決方案。該器件在單一2.7V至5.5V電源下工作，並採用SPI接口進行通信。憑藉集成內部參考和輸出緩衝器，DAC60508簡化了系統設計並減少了外部元件數量。

詳細技術參數

核心特性

• 8通道、12位DAC，集成輸出緩衝器
• 低功耗：3V時每通道0.5 mA
• 內部2.5V參考，漂移10 ppm/°C
• SPI接口，支持菊花鏈
• 上電復位至零標度或中標度
• 小型16-DSBGA封裝（2.0mm x 2.0mm）
• 寬工作溫度範圍

典型應用場景

• 5G基站：控制射頻前端模塊中的可變增益放大器（VGA）和衰減器
• 汽車儀表盤：儀表組顯示和抬頭顯示器的精確電壓參考
• 工業自動化：PLC和DCS系統的模擬輸出模塊
• 醫療設備：病人監護的可編程電流/電壓源
• 測試與測量：多通道任意波形生成

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 DAC60508ZYZFR 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
