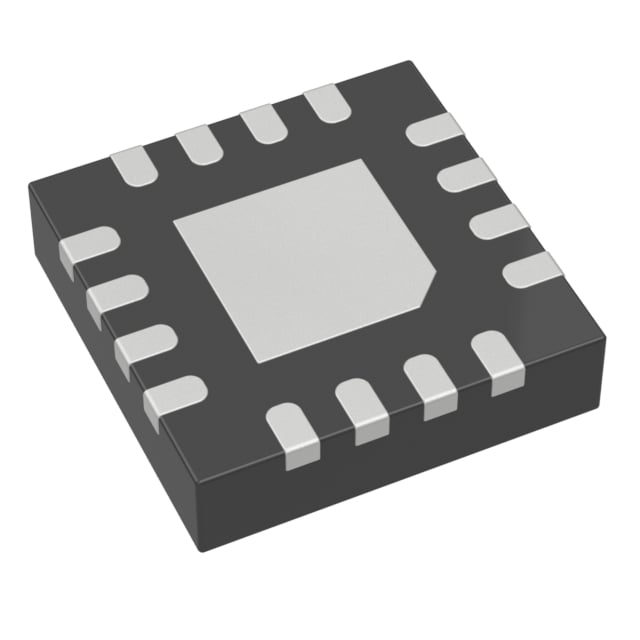

DAC63001RTER TI DAC | 16-WQFN (3x3) | 1-Ch, 12-Bit, I2C/SPI

Product Overview

The DAC63001RTER from Texas Instruments is a single-channel, 12-bit digital-to-analog converter (DAC) with a buffered voltage output. It operates from a 2.7V to 5.5V supply and features a precision internal reference (2.5V) or external reference option. The device communicates via I2C (up to 3.4 MHz) or SPI (up to 50 MHz) interfaces, making it suitable for a wide range of industrial and automotive applications. Housed in a compact 16-WQFN (3x3 mm) package, it offers excellent linearity and low power consumption.

Detailed Technical Specifications

Key Features

• 12-bit monotonic resolution
• Low power: 0.5 mW at 3V (typ)
• Power-on reset to zero-scale or mid-scale
• Rail-to-rail output buffer
• Internal reference with 10 ppm/°C drift
• Wide operating temperature range

Target Applications

• 5G base station: RF power amplifier bias control
• Automotive dashboard: HMI backlight dimming
• Industrial automation: PLC analog output modules
• Medical devices: Patient monitoring sensor calibration
• Test and measurement: Arbitrary waveform generation

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for DAC63001RTER. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

DAC63001RTER 是德州儀器（TI）推出的單通道12位數字模擬轉換器（DAC），具有緩衝電壓輸出。它可在2.7V至5.5V電源下工作，並配備精確內部基準（2.5V）或外部基準選項。該器件通過I2C（最高3.4 MHz）或SPI（最高50 MHz）接口通信，適用於各種工業和汽車應用。採用緊湊的16-WQFN（3x3 mm）封裝，具有出色的線性度和低功耗。

詳細技術參數

核心特性

• 12位單調分辨率
• 低功耗：3V時典型值0.5 mW
• 上電複位至零刻度或中間刻度
• 軌到軌輸出緩衝器
• 內部基準漂移10 ppm/°C
• 寬工作溫度範圍

典型應用場景

• 5G基站：射頻功率放大器偏置控制
• 汽車儀表板：HMI背光調光
• 工業自動化：PLC模擬輸出模塊
• 醫療設備：病人監護傳感器校準
• 測試與測量：任意波形生成

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 DAC63001RTER 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
