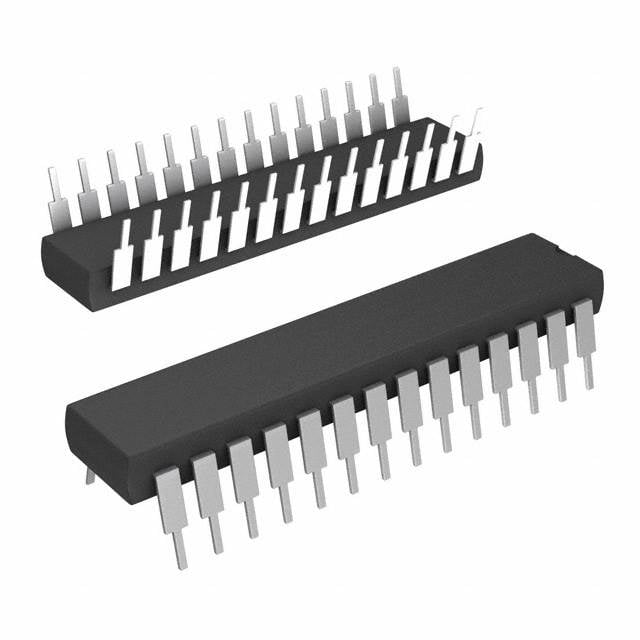

DAC715PK TI DAC | 28-PDIP | 16-Bit, 500kSPS, ±10V Output

Product Overview

The DAC715PK is a high-performance 16-bit digital-to-analog converter (DAC) from Texas Instruments, designed for precision industrial and instrumentation applications. It features a voltage output with a ±10V range, a fast settling time of 10 µs, and operates from a single +5V supply. The device is housed in a 28-pin PDIP package, making it suitable for through-hole assembly in legacy systems or prototyping.

Detailed Technical Specifications

Key Features

• 16-bit monotonic performance over temperature
• Fast settling time: 10 µs to ±0.003% FSR
• Low glitch energy: 0.5 nV-s
• Single +5V digital supply operation
• Double-buffered input logic
• On-chip output amplifier with high drive capability
• Pin-compatible with industry-standard DAC712 and DAC713

Target Applications

• Industrial process control (e.g., PLC analog output modules)
• Automated test equipment (ATE) for precision voltage generation
• Motor control systems (e.g., servo drive reference)
• Data acquisition systems (e.g., 5G base station power amplifier bias control)
• Medical instrumentation (e.g., patient monitoring system analog output)
• Audio equipment (e.g., professional mixing console control voltage)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for DAC715PK. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
