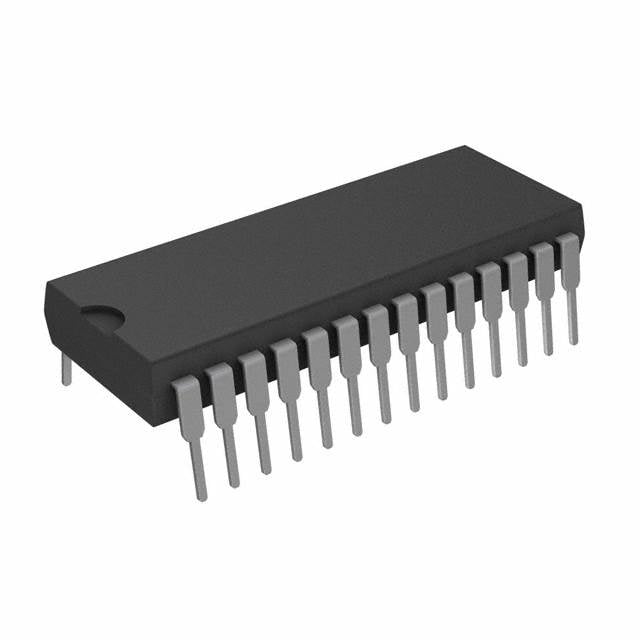

DAC725KP TI Digital-to-Analog Converter | 28-PDIP | 16-Bit, ±10V Output

Product Overview

The DAC725KP is a high-performance 16-bit digital-to-analog converter (DAC) from Texas Instruments, designed for precision industrial and instrumentation applications. Housed in a 28-pin PDIP package, it offers a ±10V bipolar output voltage range and operates from ±15V supplies. The device features a double-buffered input architecture, allowing simultaneous update of multiple DACs. With its low integral nonlinearity (INL) of ±1 LSB and excellent stability, the DAC725KP is ideal for closed-loop control systems, automated test equipment, and waveform generation.

Detailed Technical Specifications

Key Features

• 16-bit monotonic performance over temperature
• Double-buffered input for simultaneous update
• Low power dissipation: 600 mW typical
• Fast settling time: 10 µs to ±0.003%
• Guaranteed monotonicity
• Single +5V digital supply
• Industry-standard 28-pin PDIP package

Target Applications

• Industrial process control (e.g., PLC analog output modules)
• Automated test equipment (e.g., precision voltage source for ATE)
• Motor control (e.g., servo drive reference voltage)
• Waveform generation (e.g., arbitrary function generator)
• Medical instrumentation (e.g., patient monitoring system)
• 5G base station (e.g., bias control for RF amplifiers)
• Automotive dashboard (e.g., precision gauge driver)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for DAC725KP. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

DAC725KP 是德州儀器（TI）推出的一款高性能 16 位數字模擬轉換器（DAC），採用 28 引腳 PDIP 封裝，專為精密工業和儀器儀表應用設計。它提供 ±10V 的雙極性輸出電壓範圍，並在 ±15V 電源下工作。該器件具有雙緩衝輸入架構，可實現多個 DAC 的同步更新。憑藉 ±1 LSB 的低積分非線性（INL）和出色的穩定性，DAC725KP 非常適合閉環控制系統、自動測試設備和波形生成。

詳細技術參數

核心特性

• 在整個溫度範圍內保持 16 位單調性
• 雙緩衝輸入，支持同步更新
• 低功耗：典型值 600 mW
• 快速建立時間：10 µs 至 ±0.003%
• 保證單調性
• 單一 +5V 數字電源
• 行業標準 28 引腳 PDIP 封裝

典型應用場景

• 工業過程控制（例如 PLC 模擬輸出模塊）
• 自動測試設備（例如 ATE 精密電壓源）
• 電機控制（例如伺服驅動參考電壓）
• 波形生成（例如任意函數發生器）
• 醫療儀器（例如病人監護系統）
• 5G 基站（例如射頻放大器偏置控制）
• 汽車儀表盤（例如精密儀表驅動器）

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 DAC725KP 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
