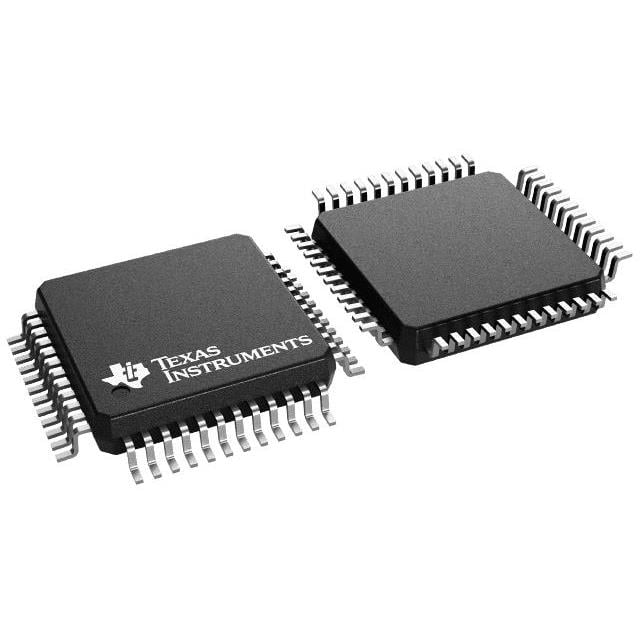

DAC7741Y/2K TI 16-Bit DAC | 48-LQFP (7x7) | ±10V Output, ±1LSB INL

Product Overview

The DAC7741Y/2K is a high-performance 16-bit digital-to-analog converter (DAC) from Texas Instruments, designed for precision industrial and instrumentation applications. Housed in a compact 48-LQFP (7x7 mm) package, it offers a ±10V bipolar output voltage range with excellent linearity and low noise. The device operates from a single +5V supply and includes an internal reference and output amplifier, simplifying system design. With a settling time of 10 µs to ±0.003% FSR, it is ideal for closed-loop control systems and automated test equipment.

Detailed Technical Specifications

Key Features

• 16-bit monotonic performance over temperature
• Low glitch energy: 1 nV-s
• On-chip output amplifier with ±10V swing
• Internal 2.5V reference (10 ppm/°C drift)
• Flexible digital interface: parallel (8/16-bit) and serial (SPI)
• Power-on reset to 0V
• Small footprint: 48-LQFP (7x7 mm)

Target Applications

• Industrial process control (e.g., PLC analog output modules)
• Automated test equipment (ATE) for precision voltage generation
• Motor control systems (e.g., servo drive position command)
• Medical instrumentation (e.g., patient monitoring system calibration)
• 5G base station power amplifier bias control
• Automotive dashboard display calibration

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for DAC7741Y/2K. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
