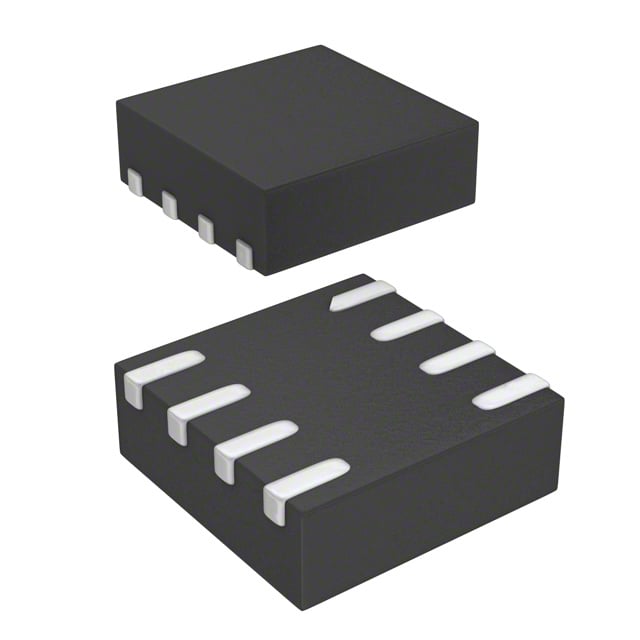

DAC80501ZDQFT TI DAC | 8-WSON (2x2) | 16-Bit, 1-Ch, SPI, 2.7-5.5V

Product Overview

The DAC80501ZDQFT is a high-performance, 16-bit, single-channel digital-to-analog converter (DAC) from Texas Instruments. It offers a voltage output with a buffered reference and operates from a single 2.7V to 5.5V supply. The device is housed in a compact 8-pin WSON package (2mm x 2mm), making it ideal for space-constrained applications. It communicates via a standard SPI interface and includes a precision internal reference (2.5V) with low drift. The DAC80501ZDQFT is designed for industrial, automotive, and communication systems requiring high accuracy and low power consumption.

Detailed Technical Specifications

Key Features

• 16-bit monotonic resolution with ±1 LSB INL/DNL
• Low power consumption: 0.5 mA (typ) at 3V
• Integrated precision 2.5V reference with 5 ppm/°C drift
• Rail-to-rail output buffer
• SPI interface with up to 50 MHz clock
• Power-on reset to zero-scale
• Small 8-pin WSON package (2mm x 2mm)
• Extended temperature range: -40°C to +125°C

Target Applications

• 5G base station: Automatic bias control for power amplifiers
• Automotive dashboard: Precision voltage references for display backlight control
• Industrial automation: Programmable logic controller (PLC) analog output modules
• Medical devices: Patient monitoring system calibration
• Test and measurement: Arbitrary waveform generation

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for DAC80501ZDQFT. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

DAC80501ZDQFT 是德州儀器（TI）推出的一款高性能、16位、單通道數模轉換器（DAC）。它提供帶緩衝的電壓輸出，可在 2.7V 至 5.5V 的單電源下工作。該器件採用緊湊的 8 引腳 WSON 封裝（2mm x 2mm），非常適合空間受限的應用。它通過標準 SPI 接口通信，並包含一個低漂移的精確內部基準（2.5V）。DAC80501ZDQFT 專為需要高精度和低功耗的工業、汽車和通信系統而設計。

詳細技術參數

核心特性

• 16 位單調分辨率，±1 LSB INL/DNL
• 低功耗：3V 時典型值 0.5 mA
• 集成精確 2.5V 基準，漂移 5 ppm/°C
• 軌到軌輸出緩衝器
• SPI 接口，時鐘高達 50 MHz
• 上電復位至零標度
• 小型 8 引腳 WSON 封裝（2mm x 2mm）
• 擴展溫度範圍：-40°C 至 +125°C

典型應用場景

• 5G 基站：功率放大器的自動偏置控制
• 汽車儀表板：顯示背光控制的精確電壓基準
• 工業自動化：可編程邏輯控制器（PLC）模擬輸出模塊
• 醫療設備：病人監護系統校準
• 測試與測量：任意波形生成

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 DAC80501ZDQFT 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
