DP83847ALQA56AX/NOPB TI Ethernet PHY | 56-WQFN (9x9) | 10/100 Mbps, RMII

Product Overview

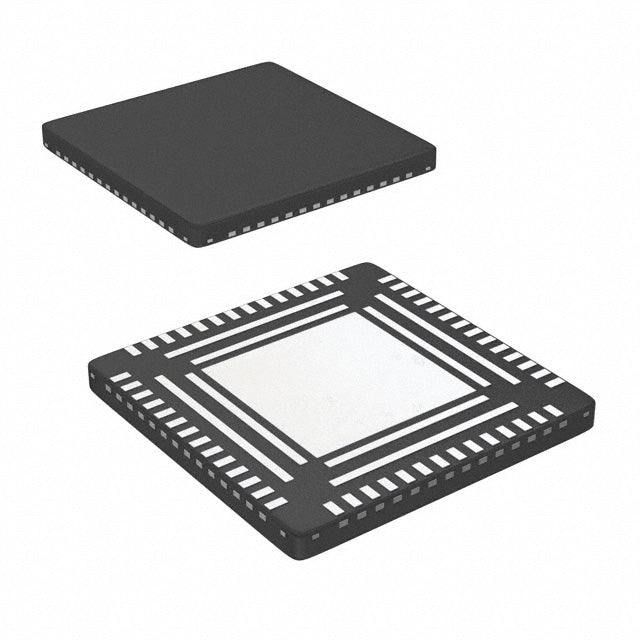

The DP83847ALQA56AX/NOPB is a high-performance, low-power 10/100 Mbps Ethernet physical layer transceiver (PHY) from Texas Instruments. It integrates all the physical layer functions needed to transmit and receive data over twisted-pair cables, supporting both 10BASE-T and 100BASE-TX standards. The device is housed in a compact 56-pin WQFN (9x9 mm) package, making it ideal for space-constrained applications. It features an RMII (Reduced Media Independent Interface) for direct connection to MAC controllers, simplifying board design and reducing pin count.

Detailed Technical Specifications

Key Features

• Low power consumption: <200 mW typical
• Integrated voltage regulator for 1.8V core
• Supports RMII Rev. 1.2
• Auto-negotiation and Auto-MDIX
• Energy Efficient Ethernet (EEE) for reduced power
• Built-in loopback and diagnostic features
• Small footprint 9x9 mm package

Target Applications

• Industrial Ethernet switches and gateways
• 5G base station control and management interfaces
• Automotive infotainment and telematics (e.g., dashboard connectivity)
• IP cameras and video surveillance systems
• Smart grid and building automation controllers
• Medical imaging and patient monitoring devices

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for DP83847ALQA56AX/NOPB. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
