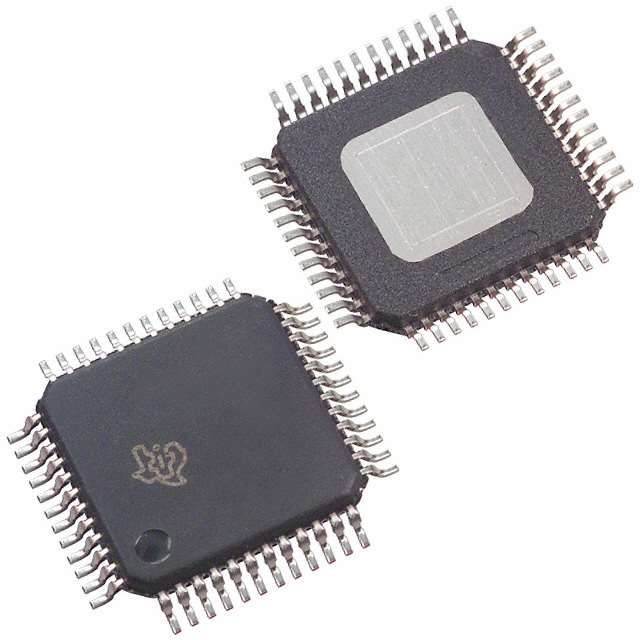

DRV3204EPHPRQ1 TI Motor Driver | 48-HTQFP (7x7) | 3-Phase, 8-28V

Product Overview

The DRV3204EPHPRQ1 is a three-phase brushless DC (BLDC) motor driver from Texas Instruments, designed for automotive and industrial applications. It integrates three half-bridge drivers with gate drive capability for external N-channel MOSFETs, supporting motor currents up to 1.5 A peak. The device operates from a supply voltage range of 8 V to 28 V and includes comprehensive protection features such as overcurrent, overtemperature, and undervoltage lockout. Housed in a 48-pin HTQFP (7x7 mm) package, it is qualified to AEC-Q100 for automotive reliability.

Detailed Technical Specifications

Key Features

• Three-phase BLDC motor driver with external MOSFETs
• Integrated bootstrap diodes and charge pump
• SPI for configuration and diagnostics
• PWM control with 0% to 100% duty cycle
• Adjustable dead time and slew rate
• Protection: overcurrent, overtemperature, undervoltage, overvoltage, and cross-conduction
• AEC-Q100 qualified

Target Applications

• Automotive: Electric power steering (EPS), engine cooling fans, oil pumps, water pumps
• Industrial: 5G base station cooling fans, servo drives, robotics, HVAC blowers
• Consumer: Dashboard blowers, seat ventilation fans

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for DRV3204EPHPRQ1. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
