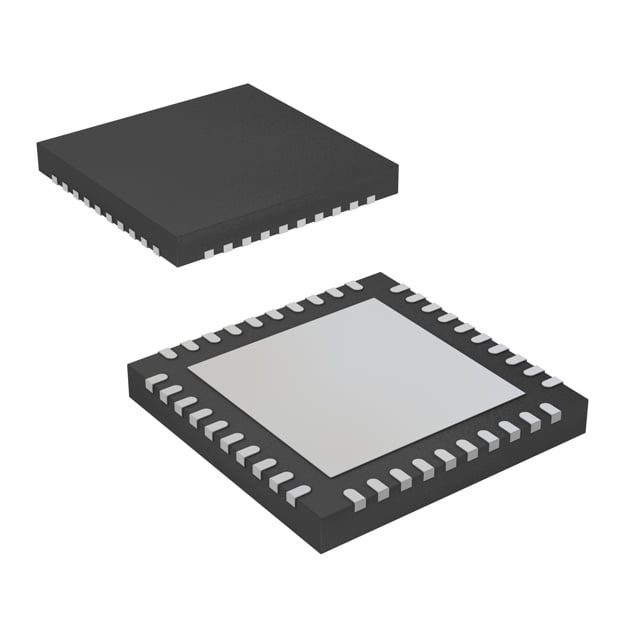

DRV8323SRTAT TI Motor Driver | 40-WQFN (6x6) | 3-Phase, 1-A Gate Drive

Product Overview

The DRV8323SRTAT is a highly integrated three-phase gate driver from Texas Instruments, designed for driving N-channel MOSFETs in brushless DC (BLDC) motor applications. It features three half-bridge gate drivers, each capable of sourcing 1 A and sinking 2 A peak current. The device operates from a supply voltage range of 6 V to 60 V and includes a buck regulator for efficient power conversion. Housed in a compact 40-pin WQFN (6x6 mm) package, it is ideal for space-constrained designs requiring high performance and reliability.

Detailed Technical Specifications

Key Features

• Integrated three-phase gate driver with smart gate drive architecture
• Adjustable gate drive current for optimized EMI and switching losses
• Integrated buck regulator for powering external MCU or logic
• SPI interface for detailed configuration and fault reporting
• Comprehensive protection: overcurrent, overtemperature, UVLO, and cross-conduction prevention
• Supports 1xPWM, 3xPWM, and 6xPWM input modes
• Low-power sleep mode with less than 1 µA current

Target Applications

• Brushless DC motor drives for industrial automation (e.g., conveyor belts, robotic arms)
• Power tools (e.g., cordless drills, saws)
• Home appliances (e.g., vacuum cleaners, washing machines)
• 5G base station fan cooling systems
• Automotive applications (e.g., electric power steering, oil pumps)
• Medical equipment (e.g., ventilators, infusion pumps)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for DRV8323SRTAT. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
