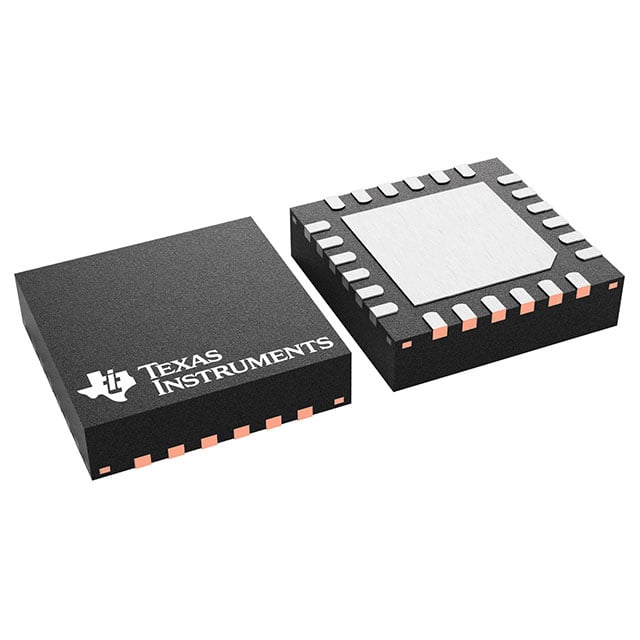

DRV8424ERGER TI Stepper Motor Driver | 24-VQFN (4x4) | 2.5A, 4.5-33V

Product Overview

The DRV8424ERGER from Texas Instruments is a dual-bridge motor driver IC designed for bipolar stepper motors and brushed DC motors. It integrates two N-channel power MOSFET H-bridges, current sensing, and protection circuitry in a compact 24-VQFN (4x4 mm) package. The device supports up to 2.5 A peak current per bridge and operates from a supply voltage range of 4.5 V to 33 V. With advanced current regulation, microstepping capability, and low power dissipation, the DRV8424ERGER is ideal for precise motion control in industrial, automotive, and consumer applications.

Detailed Technical Specifications

Key Features

• Dual H-bridge for bipolar stepper or dual brushed DC motors
• Integrated current sensing with adjustable current regulation
• 1/256 microstepping for smooth motion
• Low RDS(on) for high efficiency
• Protection: overcurrent, overtemperature, undervoltage lockout
• Small 4x4 mm QFN package saves board space

Target Applications

• 3D printers (e.g., Creality Ender series)
• CNC routers (e.g., Shapeoko)
• Robotics (e.g., robotic arms, AGVs)
• Industrial automation (e.g., conveyor belts, pick-and-place machines)
• Automotive (e.g., headlamp leveling, HVAC actuators)
• Consumer electronics (e.g., camera gimbals, smart locks)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for DRV8424ERGER. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
