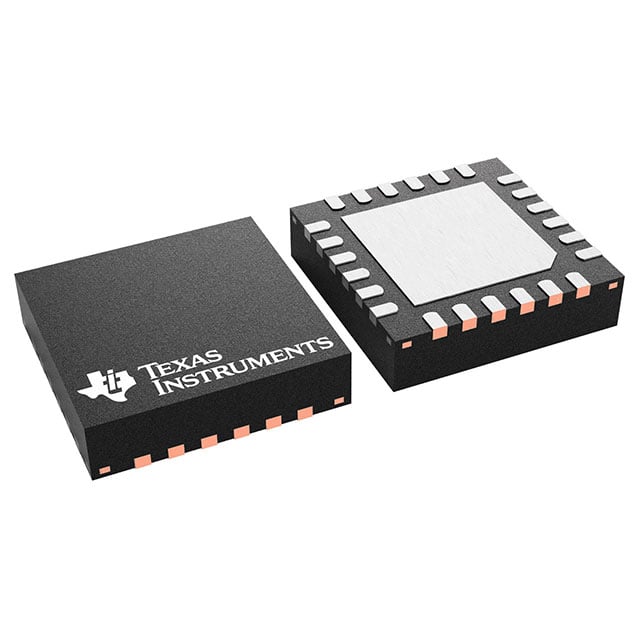

DRV8426RGER TI Stepper Motor Driver | 24-VQFN (4x4) | 2.5A, 4.5-33V

Product Overview

The DRV8426RGER from Texas Instruments is a dual-bridge stepper motor driver with integrated current sensing and microstepping capability. It is designed to drive one bipolar stepper motor or two brushed DC motors. The device operates from a supply voltage range of 4.5V to 33V and can deliver up to 2.5A peak current per bridge. The DRV8426RGER is housed in a compact 24-pin VQFN package (4mm x 4mm) with an exposed thermal pad for efficient heat dissipation.

Detailed Technical Specifications

Key Features

• Dual H-bridge for stepper or dual DC motor control
• Integrated current sensing eliminates external sense resistors
• Advanced microstepping up to 1/32 step
• Low RDS(on) for high efficiency
• Built-in protection: overcurrent, overvoltage, undervoltage lockout, thermal shutdown
• Small footprint package suitable for space-constrained designs

Target Applications

• 3D printers (e.g., Creality Ender series)
• CNC routers and engraving machines
• Robotics (e.g., robotic arms, AGVs)
• Industrial automation (e.g., conveyor belt systems)
• Medical equipment (e.g., syringe pumps, patient positioning)
• Office automation (e.g., printer paper feed, scanner)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for DRV8426RGER. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
