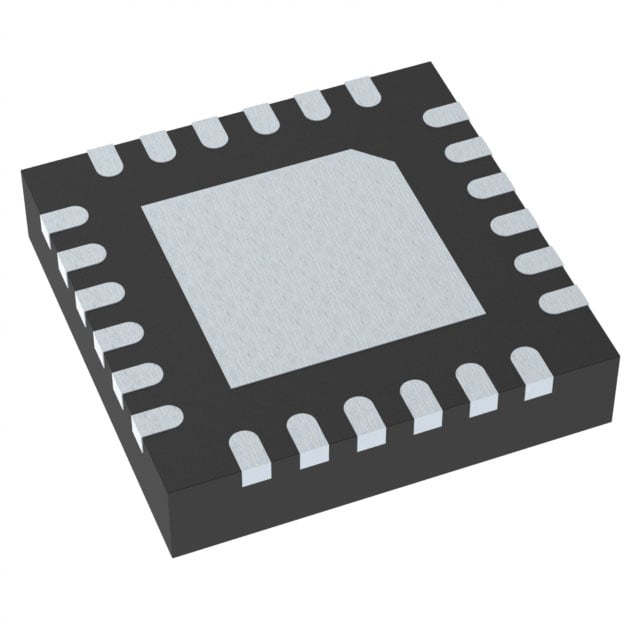

DRV8436ERGER TI Stepper Motor Driver | 24-VQFN (4x4) | 2.5A, 4.5-48V

Product Overview

The DRV8436ERGER from Texas Instruments is a dual-bridge motor driver IC designed for bipolar stepper motors or two brushed DC motors. It integrates two N-channel power MOSFET H-bridges, current sensing, and protection features in a compact 24-VQFN (4x4 mm) package. With an operating voltage range of 4.5 V to 48 V and a peak drive current of 2.5 A per bridge, it is suitable for a wide range of industrial and consumer applications. The device supports microstepping up to 1/256 step for smooth motion control and includes advanced protection such as overcurrent, overtemperature, and undervoltage lockout.

Detailed Technical Specifications

Key Features

• Dual H-bridge for stepper or dual brushed DC motors
• Wide supply voltage range: 4.5 V to 48 V
• High current capability: 2.5 A peak per bridge
• Microstepping up to 1/256 step for smooth motion
• Integrated current sensing eliminates external sense resistors
• STEP/DIR and SPI interface for flexible control
• Advanced protection: overcurrent, overtemperature, undervoltage lockout
• Compact 4x4 mm QFN package for space-constrained designs

Target Applications

• 3D printers (e.g., Creality Ender series)
• CNC routers and engraving machines
• Industrial automation (e.g., conveyor belt stepper drives)
• Robotics (e.g., robotic arm joint control)
• Medical equipment (e.g., syringe pumps)
• Office automation (e.g., printer paper feed)
• 5G base station antenna tilt control
• Automotive dashboard stepper gauges
