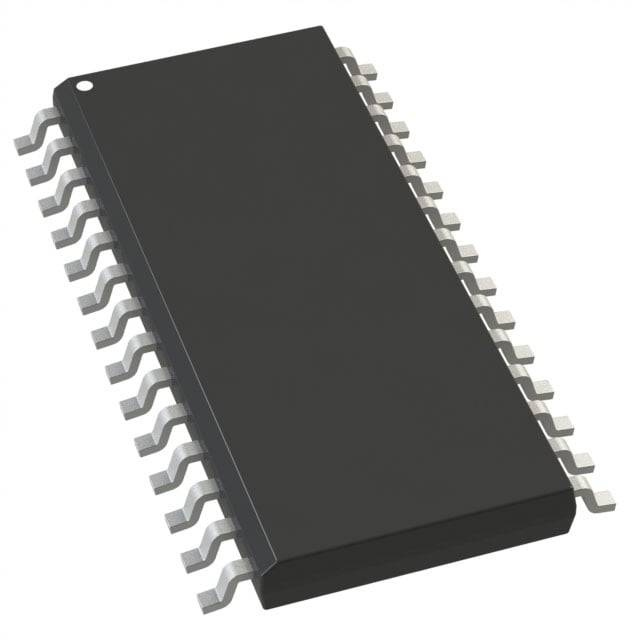

DRV8814PWPR TI Stepper Motor Driver | 28-HTSSOP | 2.5A, 8-45V

Product Overview

The DRV8814PWPR from Texas Instruments is a dual-bridge motor driver IC designed for driving bipolar stepper motors or two DC motors. It integrates two N-channel power MOSFET H-bridges, charge pump regulator, current sensing, and protection circuitry. The device operates from 8V to 45V supply voltage and can deliver up to 2.5A peak current per bridge. The 28-HTSSOP package with PowerPAD ensures excellent thermal performance. It is ideal for applications requiring precise current control and low power dissipation.

Detailed Technical Specifications

Key Features

• Dual H-bridge motor driver
• Low RDS(on) MOSFETs for high efficiency
• Integrated current sensing and regulation
• Step/Direction and PWM control modes
• 1/8 microstepping support
• Overcurrent, overtemperature, and undervoltage protection
• Low sleep current

Target Applications

• 5G base station antenna tilt control
• Automotive dashboard stepper motors
• Industrial automation (e.g., conveyor belt drives)
• Office automation (e.g., printer paper feed)
• Medical equipment (e.g., syringe pumps)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for DRV8814PWPR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
