DS15BR401TSQ/NOPB TI LVDS Buffer | 32-WQFN (5x5) | 4-Ch, 1.5Gbps

Product Overview

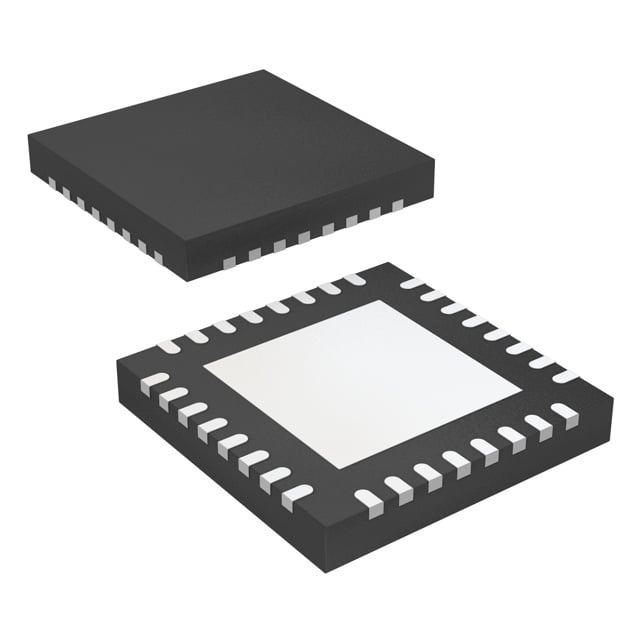

The DS15BR401TSQ/NOPB is a high-performance 4-channel LVDS buffer/repeater from Texas Instruments, designed to regenerate and condition LVDS signals for extended reach and improved signal integrity. Housed in a compact 32-WQFN (5x5 mm) package, this device operates at data rates up to 1.5 Gbps per channel, making it ideal for high-speed data transmission in noise-sensitive environments. It features low output skew, low jitter, and flow-through pinout for easy PCB layout.

Detailed Technical Specifications

Key Features

• 4-channel LVDS buffer/repeater with 1.5 Gbps per channel
• Low output skew (50 ps max) and low jitter (2 ps RMS)
• Flow-through pinout simplifies PCB routing
• Fail-safe input ensures known output state when input is open or terminated
• Power consumption: 150 mW (typ) at 1.5 Gbps
• Industrial temperature range: -40°C to +85°C

Target Applications

• 5G base station backplane and clock distribution
• Automotive infotainment and dashboard displays
• High-speed data acquisition systems
• Medical imaging equipment (e.g., ultrasound)
• Industrial automation and robotics

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for DS15BR401TSQ/NOPB. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
