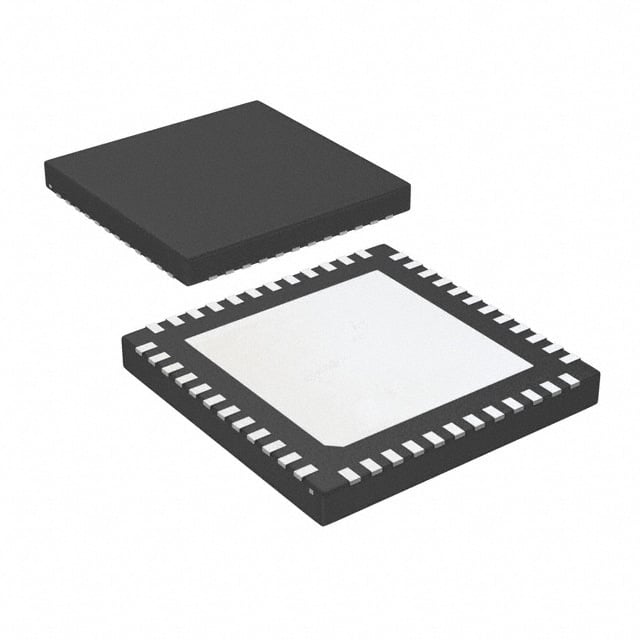

DS15MB200TSQ/NOPB TI Dual 2x2 Crosspoint Switch | 48-WQFN (7x7) | 1.5Gbps, 2:1 Mux/Buffer

Product Overview

The DS15MB200TSQ/NOPB from Texas Instruments is a dual 2x2 crosspoint switch with 2:1 multiplexer and buffer functionality, designed for high-speed signal routing in digital video and data communication systems. It operates at data rates up to 1.5 Gbps per channel, supporting LVDS, LVPECL, and CML signal levels. The device is housed in a compact 48-WQFN (7x7 mm) package, offering low power consumption and minimal signal distortion.

Detailed Technical Specifications

Key Features

• Dual 2x2 crosspoint switch with 2:1 multiplexer and buffer
• Supports data rates up to 1.5 Gbps
• Low jitter and skew for high-speed signals
• Low power consumption (150 mW typical)
• Wide common-mode range (0.5V to 2.4V)
• Flow-through pinout for easy PCB layout
• Single 3.3V supply operation
• Industrial temperature range

Target Applications

• Digital video routers and switchers (e.g., for broadcast video)
• 5G base station backplane signal routing
• Automotive infotainment and dashboard displays
• High-speed data acquisition systems
• Test and measurement equipment
• Redundant signal path switching in communication systems

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for DS15MB200TSQ/NOPB. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
