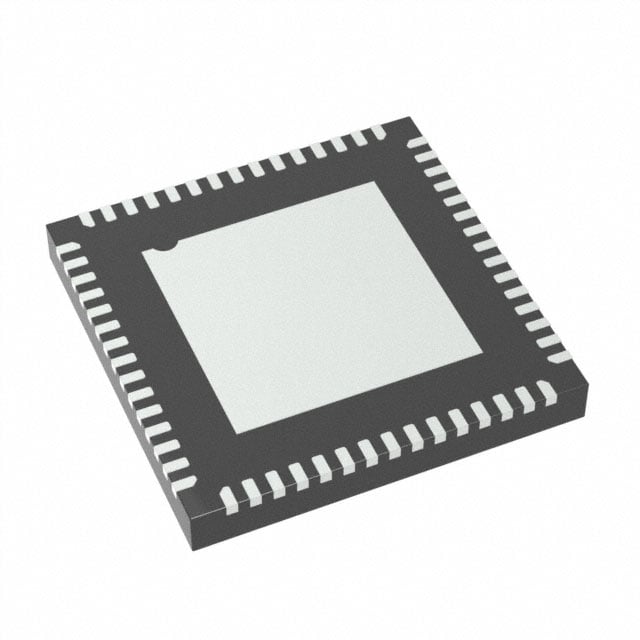

DS90UR906QSQE/NOPB TI Deserializer | 60-WQFN (9x9) | 5-65MHz, 14-Bit

Product Overview

The DS90UR906QSQE/NOPB is a 14-bit deserializer from Texas Instruments, designed to receive serialized data from a companion serializer (e.g., DS90UR905Q) over a single differential pair. It operates over a wide frequency range of 5 MHz to 65 MHz, supporting data rates up to 910 Mbps. The device is housed in a compact 60-pin WQFN (9x9 mm) package, making it ideal for space-constrained applications. It features embedded clock recovery, DC-balancing, and programmable spread spectrum to reduce EMI. The DS90UR906QSQE/NOPB is qualified for automotive applications (AEC-Q100) and operates over a -40°C to +105°C temperature range.

Detailed Technical Specifications

Key Features

• 14-bit deserializer with embedded clock recovery
• Single differential pair input reduces cable and connector cost
• DC-balancing and programmable spread spectrum for low EMI
• Built-in self-test (BIST) for link integrity verification
• Supports AC-coupled or DC-coupled interconnects
• Low power consumption (250 mW typical)
• Small footprint 9x9 mm WQFN package
• Automotive qualified (AEC-Q100)

Target Applications

• Automotive infotainment and dashboard displays (e.g., Tesla Model 3 center display)
• 5G base station control and data links (e.g., Nokia AirScale remote radio head)
• Industrial cameras and machine vision systems (e.g., Basler ace series)
• Medical imaging equipment (e.g., GE Healthcare ultrasound systems)
• Security and surveillance video transmission (e.g., Hikvision PTZ cameras)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for DS90UR906QSQE/NOPB. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

DS90UR906QSQE/NOPB 是德州儀器（TI）推出的一款14位解串器，設計用於通過單一差分對接收來自配套串行器（如DS90UR905Q）的串行數據。它支持5 MHz至65 MHz的寬頻率範圍，數據率高達910 Mbps。該器件採用緊湊的60引腳WQFN（9x9 mm）封裝，非常適合空間受限的應用。它具有嵌入式時鐘恢復、直流平衡和可編程擴頻功能，以降低EMI。DS90UR906QSQE/NOPB 符合汽車應用資格（AEC-Q100），工作溫度範圍為-40°C至+105°C。

詳細技術參數

核心特性

• 14位解串器，帶嵌入式時鐘恢復
• 單差分對輸入，降低線纜和連接器成本
• 直流平衡和可編程擴頻，實現低EMI
• 內置自檢（BIST）功能，用於鏈路完整性驗證
• 支持交流耦合或直流耦合互連
• 低功耗（典型250 mW）
• 小巧的9x9 mm WQFN封裝
• 符合汽車資格（AEC-Q100）

典型應用場景

• 汽車信息娛樂和儀表板顯示（例如特斯拉Model 3中控顯示屏）
• 5G基站控制和數據鏈路（例如諾基亞AirScale遠程射頻頭）
• 工業相機和機器視覺系統（例如Basler ace系列）
• 醫療成像設備（例如GE Healthcare超聲系統）
• 安防監控視頻傳輸（例如海康威視PTZ攝像機）

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 DS90UR906QSQE/NOPB 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
