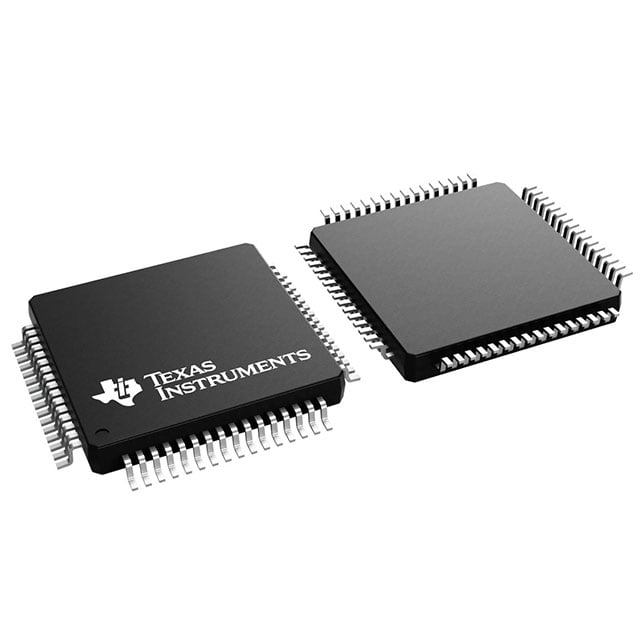

F280025PMSR TI C2000 MCU | 64-LQFP (10x10) | 100MHz, 128KB Flash

Product Overview

The F280025PMSR is a high-performance 32-bit microcontroller from Texas Instruments' C2000™ real-time control family. It is designed for advanced closed-loop control applications such as industrial drives, servo drives, and power conversion systems. With a 100MHz C28x DSP core, integrated FPU, and TMU, it delivers efficient real-time signal processing. The device features 128KB of flash memory, 12-bit ADCs, and multiple communication interfaces including CAN-FD and SPI. Housed in a compact 64-LQFP (10x10mm) package, it balances performance with board space efficiency.

Detailed Technical Specifications

Key Features

• High-performance C28x DSP core with floating-point unit (FPU) and trigonometric math unit (TMU) for efficient real-time control algorithms.
• Integrated control peripherals: 14 ePWM channels with high-resolution capability (150 ps), 2x 12-bit ADCs, and quadrature encoder interface (eQEP).
• Advanced connectivity: CAN-FD for robust industrial communication, SPI, SCI, and I2C.
• On-chip memory: 128KB flash with ECC, 36KB SRAM, and dual-zone security for code protection.
• Low-power modes: idle, standby, and halt with fast wake-up.
• Small footprint: 64-LQFP package (10x10mm) suitable for space-constrained designs.

Target Applications

• Industrial motor drives (e.g., servo drives for robotic arms, variable frequency drives for conveyor belts).
• Power conversion systems (e.g., solar inverters, UPS, EV charging stations).
• Automotive: DC-DC converters, on-board chargers (OBC), and battery management systems (BMS).
• 5G base station power management and control.
• Digital power supplies for telecom and data centers.

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for F280025PMSR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

F280025PMSR 是德州儀器 C2000™ 實時控制系列的高性能 32 位微控制器，專為工業驅動、伺服驅動和電源轉換等高級閉環控制應用而設計。它採用 100MHz C28x DSP 內核，集成 FPU 和 TMU，可實現高效的實時信號處理。該器件配備 128KB 閃存、12 位 ADC 以及多種通信接口（包括 CAN-FD 和 SPI）。採用緊湊的 64-LQFP（10x10mm）封裝，在性能與電路板空間之間取得平衡。

詳細技術參數

核心特性

• 高性能 C28x DSP 內核，集成浮點運算單元 (FPU) 和三角數學單元 (TMU)，實現高效的實時控制算法。
• 集成控制外設：14 個 ePWM 通道（帶 150 ps 高分辨率）、2x 12 位 ADC 和正交編碼器接口 (eQEP)。
• 先進連接性：CAN-FD 用於穩健的工業通信，SPI、SCI 和 I2C。
• 片上存儲器：128KB 閃存（帶 ECC）、36KB SRAM，以及雙區域安全保護。
• 低功耗模式：空閒、待機和停機模式，快速喚醒。
• 小尺寸：64-LQFP 封裝（10x10mm），適合空間受限的設計。

典型應用場景

• 工業電機驅動（例如：機械臂伺服驅動、傳送帶變頻驅動）。
• 電源轉換系統（例如：太陽能逆變器、UPS、電動汽車充電樁）。
• 汽車電子：DC-DC 轉換器、車載充電器 (OBC) 和電池管理系統 (BMS)。
• 5G 基站電源管理與控制。
• 電信和數據中心的數字電源。

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 F280025PMSR 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
