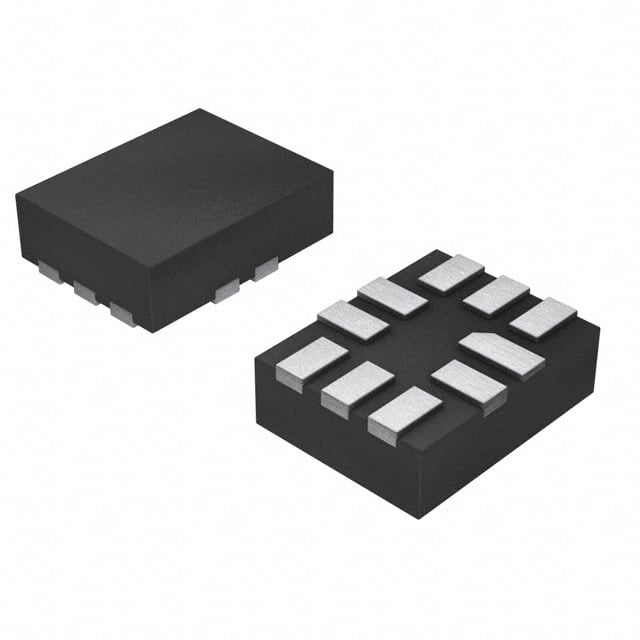

INA216A2RSWR TI Current Sense Amplifier | 10-UQFN (1.8X1.4) | 500kHz BW, 0.5% Gain Error

Product Overview

The INA216A2RSWR is a high-side current sense amplifier from Texas Instruments, designed for precision current measurement in a compact 10-UQFN (1.8x1.4mm) package. It features a voltage output that is proportional to the load current, with a fixed gain of 100 V/V. The device operates over a wide common-mode voltage range from 0V to 26V, making it suitable for various applications including power management, battery monitoring, and motor control. With a bandwidth of 500kHz and a gain error of only 0.5%, the INA216A2RSWR provides accurate and fast current sensing, essential for modern electronic systems.

Detailed Technical Specifications

Key Features

• High accuracy: 0.5% gain error and low offset voltage
• Wide common-mode voltage range: 0V to 26V
• Low quiescent current: 65 µA, ideal for battery-powered devices
• Small package: 10-UQFN (1.8x1.4mm) saves board space
• Fast response: 500kHz bandwidth for dynamic current monitoring
• Output voltage proportional to load current, simplifies ADC interface

Target Applications

• 5G base station power supply monitoring
• Automotive dashboard current sensing for infotainment systems
• Battery management systems in electric vehicles (EVs)
• Industrial motor control and servo drives
• Portable device power management (e.g., smartphones, tablets)
• Solar panel current monitoring in renewable energy systems
