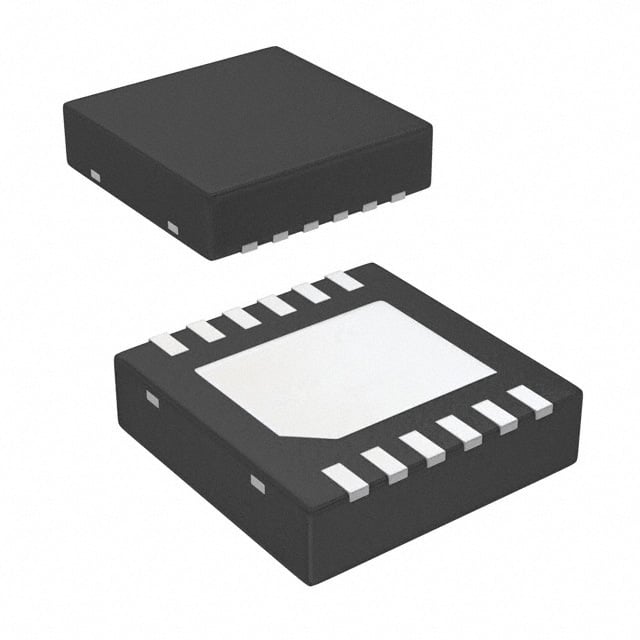

LDC1312QDNTTQ1 TI Inductive Sensing IC | 12-WSON (4x4) | 2-Ch, 12-Bit, I2C

Product Overview

The LDC1312QDNTTQ1 is a high-performance, 2-channel, 12-bit inductance-to-digital converter (LDC) from Texas Instruments, designed for automotive and industrial applications. It operates with a supply voltage range of 2.7V to 3.6V and communicates via I2C interface. The device is housed in a compact 12-WSON (4x4 mm) package, making it ideal for space-constrained designs. It provides accurate and reliable inductive sensing for proximity, position, and touch detection.

Detailed Technical Specifications

Key Features

• Two independent inductance measurement channels
• 12-bit resolution with high accuracy
• I2C interface for easy integration
• Wide operating temperature range (-40°C to +125°C)
• Low power consumption (2.1 mA active)
• Small 12-WSON package (4x4 mm)
• Automotive qualified (AEC-Q100)
• Built-in EMI immunity

Target Applications

• Automotive: Dashboard button replacement, steering wheel controls, gear shift position sensing
• Industrial: Proximity sensors for 5G base station equipment, metal detection in assembly lines
• Consumer: Touchless user interfaces, liquid level sensing
• Medical: Non-contact position sensing for surgical tools

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for LDC1312QDNTTQ1. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

LDC1312QDNTTQ1 是德州儀器（TI）推出的一款高性能、2通道、12位電感數字轉換器（LDC），專為汽車和工業應用設計。它支持2.7V至3.6V的電源電壓範圍，並通過I2C接口進行通信。該器件採用緊湊的12-WSON（4x4 mm）封裝，非常適合空間受限的設計。它為接近、位置和觸摸檢測提供準確可靠的電感感應。

詳細技術參數

核心特性

• 兩個獨立的電感測量通道
• 12位分辨率，高精度
• I2C接口，易於集成
• 寬工作溫度範圍（-40°C 至 +125°C）
• 低功耗（工作模式2.1 mA）
• 小型12-WSON封裝（4x4 mm）
• 通過汽車級認證（AEC-Q100）
• 內置EMI抗干擾能力

典型應用場景

• 汽車：儀表板按鈕替代、方向盤控制、檔位位置感應
• 工業：5G基站設備的接近傳感器、裝配線金屬檢測
• 消費電子：非接觸式用戶界面、液位感應
• 醫療：手術工具的非接觸式位置感應

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 LDC1312QDNTTQ1 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
