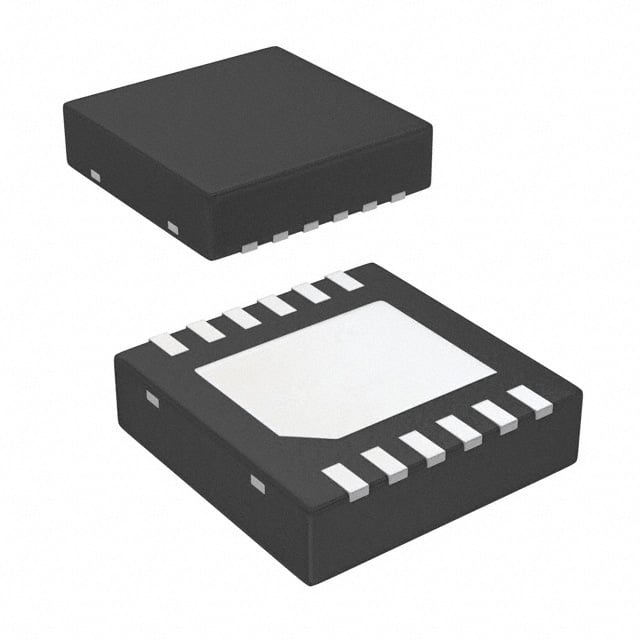

LDC1612QDNTTQ1 TI Inductive Sensing | 12-WSON (4X4) | 2-Ch, 28-Bit, AEC-Q100

Product Overview

The LDC1612QDNTTQ1 is a high-performance, multi-channel inductive-to-digital converter from Texas Instruments, designed for automotive and industrial applications. It features two independent channels with 28-bit resolution, enabling precise inductance measurements. The device operates over a wide temperature range (-40°C to +125°C) and is AEC-Q100 qualified for automotive reliability. Housed in a compact 12-WSON (4x4 mm) package, it is ideal for space-constrained designs.

Detailed Technical Specifications

Key Features

• Dual-channel inductive sensing with 28-bit resolution
• I2C interface for easy integration
• Low power consumption: 2.1 mA (active mode)
• Built-in temperature sensor for compensation
• Programmable conversion rate and sensor frequency
• Robust EMI performance
• AEC-Q100 qualified for automotive applications

Target Applications

• Automotive: Steering wheel position sensing, pedal position, gear shift detection, suspension height sensing
• Industrial: Proximity sensing, metal detection, linear/rotary position encoders
• Consumer: Touch buttons, knobs, and sliders in appliances
• Specific examples: 5G base station antenna tuning, dashboard button replacement, EV battery disconnect switch detection

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for LDC1612QDNTTQ1. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

LDC1612QDNTTQ1 是德州儀器（TI）推出的一款高性能多通道電感數字轉換器，專為汽車和工業應用設計。它具備兩個獨立通道，28位分辨率，可實現精確的電感測量。該器件支持寬溫度範圍（-40°C 至 +125°C），並通過 AEC-Q100 汽車級認證。採用緊湊的 12-WSON（4x4 mm）封裝，適合空間受限的設計。

詳細技術參數

核心特性

• 雙通道電感感應，28位分辨率
• I2C 接口，易於集成
• 低功耗：2.1 mA（工作模式）
• 內置溫度傳感器，用於補償
• 可編程轉換速率和傳感器頻率
• 優異的 EMI 性能
• 通過 AEC-Q100 汽車級認證

典型應用場景

• 汽車：方向盤位置感應、踏板位置、檔位檢測、懸掛高度感應
• 工業：接近感應、金屬檢測、線性/旋轉位置編碼器
• 消費電子：觸摸按鈕、旋鈕和滑塊（如家電）
• 具體示例：5G 基站天線調諧、儀表盤按鈕替代、電動汽車電池斷路開關檢測

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 LDC1612QDNTTQ1 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
