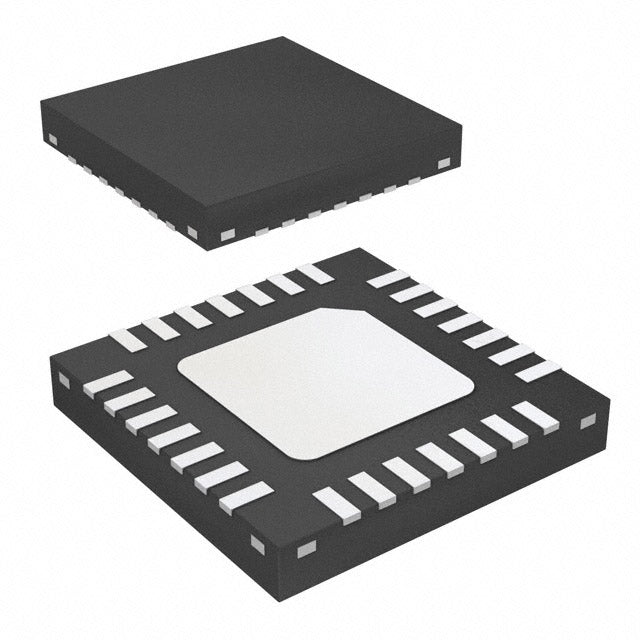

LM21305SQE/NOPB TI DC-DC Converter | 28-WQFN (5x5) | 3A, 4.5V-14V Input

Product Overview

The LM21305SQE/NOPB is a high-performance, synchronous step-down DC-DC converter from Texas Instruments, designed to deliver up to 3A of continuous output current. It operates over a wide input voltage range of 4.5V to 14V, making it suitable for a variety of power supply applications. The device is housed in a compact 28-pin WQFN package (5x5 mm), enabling space-efficient designs. With integrated high-side and low-side MOSFETs, the LM21305 achieves high efficiency and reduces external component count. The switching frequency is adjustable from 200 kHz to 1.5 MHz, allowing optimization between efficiency and solution size. Additional features include soft-start, overcurrent protection, and thermal shutdown.

Detailed Technical Specifications

Key Features

• Integrated 3A synchronous buck converter
• Wide input voltage range: 4.5V to 14V
• Adjustable switching frequency (200 kHz to 1.5 MHz)
• High efficiency up to 95%
• Internal soft-start reduces inrush current
• Overcurrent and thermal protection
• Small 5x5 mm WQFN package

Target Applications

• 5G base station power supplies
• Automotive infotainment and dashboard systems
• Industrial control systems
• Networking equipment (routers, switches)
• FPGA and DSP power rails

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for LM21305SQE/NOPB. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
