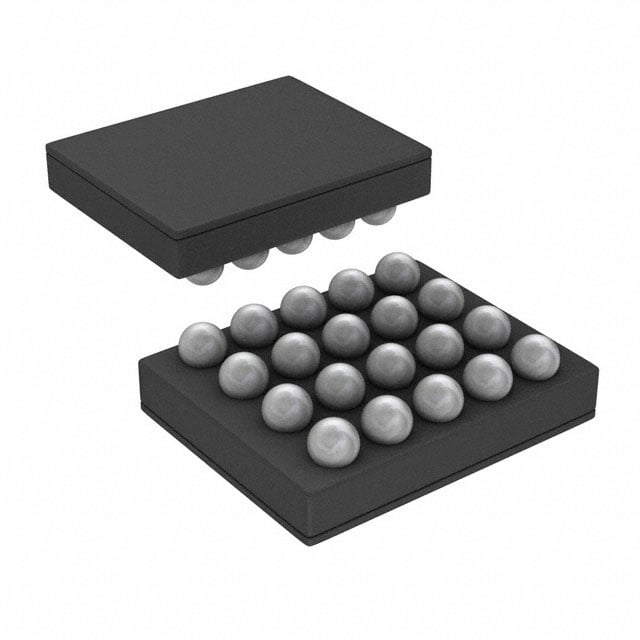

LM2756TM/NOPB TI LED Driver | 20-DSBGA | 32 Programmable Current Sinks

Product Overview

The LM2756TM/NOPB from Texas Instruments is a high-performance, programmable LED driver designed for portable and backlight applications. It features 32 constant-current sinks with 8-bit resolution, enabling precise brightness control. Housed in a compact 20-DSBGA package, it offers a small footprint ideal for space-constrained designs. The device operates from a 2.7V to 5.5V input voltage range and provides up to 25mA per channel.

Detailed Technical Specifications

Key Features

• 32 programmable constant-current sinks with 8-bit PWM dimming
• I2C-compatible interface for flexible control
• Low dropout voltage (100mV typical at 20mA)
• Built-in thermal shutdown and overcurrent protection
• Ultra-small 20-DSBGA package saves board space

Target Applications

• Smartphone and tablet backlighting
• Portable media players and gaming devices
• Automotive dashboard and infotainment displays
• 5G base station status indicators
• Industrial control panel lighting

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for LM2756TM/NOPB. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
