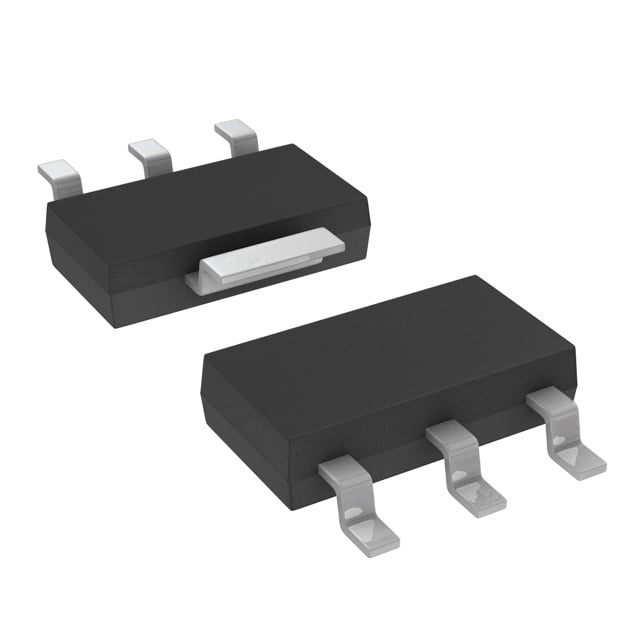

LM2936MP-3.3 TI Linear Voltage Regulator | SOT-223-4 | 3.3V Output, 50mA

Product Overview

The LM2936MP-3.3 from Texas Instruments is a low-dropout (LDO) linear voltage regulator designed to deliver a fixed 3.3V output with a maximum output current of 50mA. Housed in a compact SOT-223-4 package, this device offers excellent line and load regulation, making it ideal for battery-powered and automotive applications. With a quiescent current of only 15µA (typical), it significantly extends battery life in portable devices. The LM2936MP-3.3 also features reverse battery protection, short-circuit protection, and thermal shutdown, ensuring robust performance in harsh environments.

Detailed Technical Specifications

Key Features

• Fixed 3.3V output with high accuracy (±2%)
• Ultra-low quiescent current (15µA typical) for battery-powered applications
• Low dropout voltage (200mV at 50mA)
• Wide input voltage range (4V to 40V)
• Reverse battery protection
• Short-circuit and thermal overload protection
• Stable with low-ESR output capacitors (1µF ceramic)
• Industry-standard SOT-223-4 package for easy PCB layout

Target Applications

• Automotive: Infotainment systems, dashboard clusters, and body control modules (e.g., Ford SYNC, Tesla Model 3 dashboard)
• Industrial: PLCs, sensor interfaces, and remote monitoring units (e.g., Siemens S7-1200 PLC)
• Consumer: Portable medical devices, handheld instruments, and smart home hubs (e.g., Fitbit Charge 5, Amazon Echo Dot)
• Telecom: 5G small cell base stations and network interface cards (e.g., Nokia AirScale)
• Battery-powered equipment: IoT sensors, wearables, and wireless modules (e.g., Texas Instruments CC2652R)
