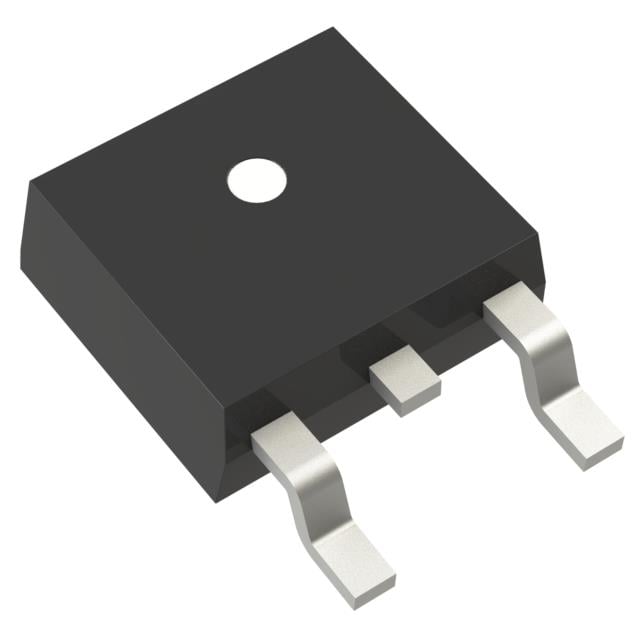

LM2936QDT-5.0/NOPB TI LDO Regulator | TO-252-3 | 5V Output, 50mA

Product Overview

The LM2936QDT-5.0/NOPB is a low-dropout (LDO) voltage regulator from Texas Instruments, offering a fixed 5.0V output with a maximum output current of 50mA. Housed in a TO-252-3 (DPAK) package, this device is designed for automotive and industrial applications requiring low quiescent current and high input voltage tolerance. With an ultra-low dropout voltage of typically 200mV at 50mA load, it ensures efficient regulation even when the input voltage is close to the output. The LM2936QDT-5.0/NOPB features reverse battery protection, short-circuit protection, and thermal shutdown, making it a robust solution for harsh environments.

Detailed Technical Specifications

Key Features

• Fixed 5.0V output with ±2% accuracy
• Ultra-low dropout voltage: 200mV at 50mA
• Wide input voltage range: 5.5V to 40V (60V transient)
• Low quiescent current: 15µA typical
• Reverse battery protection
• Short-circuit and thermal overload protection
• AEC-Q100 qualified for automotive applications
• Available in TO-252-3 package for easy PCB mounting

Target Applications

• Automotive infotainment systems (e.g., dashboard displays, head units)
• 5G base station power management
• Industrial sensor modules (e.g., pressure transmitters, temperature sensors)
• Battery-powered equipment (e.g., portable medical devices)
• Telecom equipment (e.g., routers, switches)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for LM2936QDT-5.0/NOPB. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

LM2936QDT-5.0/NOPB 是德州儀器（TI）推出的一款低壓差（LDO）穩壓器，提供固定的5.0V輸出，最大輸出電流為50mA。採用TO-252-3（DPAK）封裝，專為汽車和工業應用設計，具有低靜態電流和高輸入電壓容差。在50mA負載下，典型壓差僅為200mV，確保在輸入電壓接近輸出時仍能高效穩壓。該器件具備反接保護、短路保護和熱關斷功能，是惡劣環境下的穩健解決方案。

詳細技術參數

核心特性

• 固定5.0V輸出，精度±2%
• 超低壓差：50mA時200mV
• 寬輸入電壓範圍：5.5V至40V（瞬態60V）
• 低靜態電流：典型15µA
• 反接保護
• 短路和過熱保護
• 通過AEC-Q100汽車級認證
• 採用TO-252-3封裝，易於PCB安裝

典型應用場景

• 汽車信息娛樂系統（如儀表盤顯示、主機）
• 5G基站電源管理
• 工業傳感器模塊（如壓力變送器、溫度傳感器）
• 電池供電設備（如便攜醫療設備）
• 電信設備（如路由器、交換機）

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 LM2936QDT-5.0/NOPB 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
