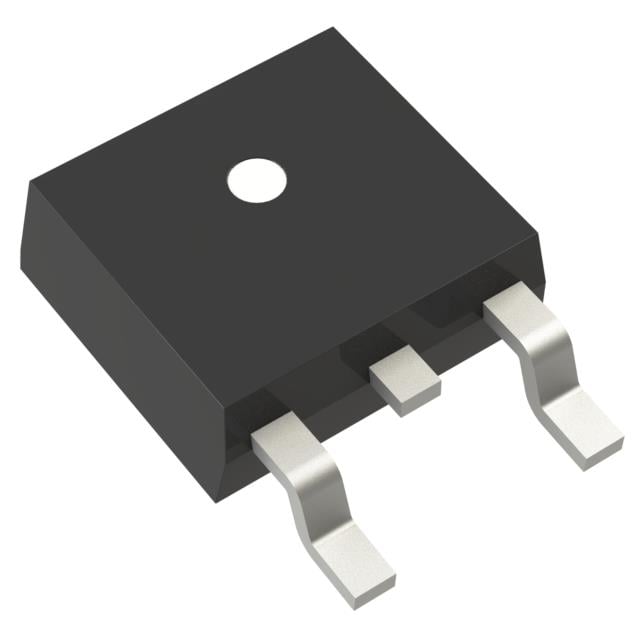

LM317AMDT/NOPB TI Linear Voltage Regulator | TO-252-3 | 1.2V-37V, 1.5A

Product Overview

The LM317AMDT/NOPB from Texas Instruments is a three-terminal adjustable positive voltage regulator capable of supplying 1.5A over an output voltage range of 1.2V to 37V. It is housed in a TO-252-3 (DPAK) package, offering excellent thermal performance and compact footprint for space-constrained applications. The device requires only two external resistors to set the output voltage and features internal current limiting, thermal shutdown, and safe-area compensation. With a typical line regulation of 0.01%/V and load regulation of 0.1%, it provides stable and precise voltage regulation for a wide variety of electronic systems.

Detailed Technical Specifications

Key Features

• Adjustable output voltage from 1.2V to 37V
• Output current up to 1.5A
• Internal current limiting and thermal shutdown
• Safe-area compensation
• Low quiescent current
• Excellent line and load regulation
• Wide operating temperature range
• Standard TO-252-3 package for easy mounting

Target Applications

• 5G base station power supplies: Provides stable bias voltages for RF amplifiers and digital processors.
• Automotive dashboard displays: Regulates power for LCD panels and backlight drivers.
• Industrial control systems: Supplies adjustable voltage for sensors and actuators.
• Consumer electronics: Powers audio amplifiers, set-top boxes, and gaming consoles.
• Telecommunications equipment: Used in line cards and routers for clean voltage rails.

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for LM317AMDT/NOPB. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

LM317AMDT/NOPB 是德州儀器（TI）推出的三端可調正電壓穩壓器，能夠在 1.2V 至 37V 的輸出電壓範圍內提供 1.5A 電流。它採用 TO-252-3（DPAK）封裝，具有優異的熱性能和緊湊的佔位面積，適用於空間受限的應用。該器件只需兩個外部電阻即可設定輸出電壓，並具有內部電流限制、熱關斷和安全區補償功能。典型線性調整率為 0.01%/V，負載調整率為 0.1%，可為各種電子系統提供穩定精確的電壓調節。

詳細技術參數

核心特性

• 可調輸出電壓 1.2V 至 37V
• 輸出電流高達 1.5A
• 內部電流限制和熱關斷
• 安全區補償
• 低靜態電流
• 優異的線性和負載調整率
• 寬工作溫度範圍
• 標準 TO-252-3 封裝，易於安裝

典型應用場景

• 5G 基站電源：為射頻放大器及數字處理器提供穩定偏置電壓。
• 汽車儀表板顯示器：為 LCD 面板和背光驅動器供電。
• 工業控制系統：為傳感器和執行器提供可調電壓。
• 消費電子：為音頻放大器、機頂盒和遊戲機供電。
• 電信設備：用於線路卡和路由器，提供乾淨的電壓軌。

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 LM317AMDT/NOPB 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
