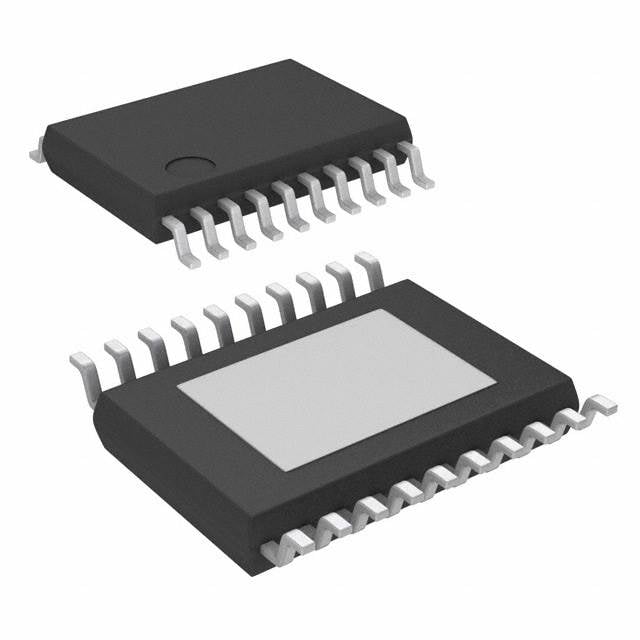

LM3424MH/NOPB TI LED Driver | 20-HTSSOP | 40V, 1A, PWM Dimming

Product Overview

The LM3424MH/NOPB from Texas Instruments is a versatile, constant-current LED driver designed for high-brightness LED applications. It operates from an input voltage range of 4.5V to 40V and delivers up to 1A of output current. The device integrates a high-side current sense amplifier, a PWM dimming input, and a thermal shutdown feature, making it ideal for automotive, industrial, and general lighting systems. Housed in a 20-HTSSOP package, it offers excellent thermal performance and a compact footprint.

Detailed Technical Specifications

Key Features

• Wide input voltage range (4.5V to 40V) for automotive and industrial applications
• High-side current sensing for accurate LED current regulation
• PWM dimming input for precise brightness control
• Integrated thermal shutdown and current limit protection
• Up to 1 MHz switching frequency for smaller external components
• Low shutdown current (< 1 µA)

Target Applications

• Automotive lighting: headlamps, daytime running lights (DRL), taillights
• Industrial lighting: high-bay fixtures, streetlights
• General LED lighting: downlights, panel lights
• 5G base station indicator lights
• Dashboard backlighting in vehicles

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for LM3424MH/NOPB. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
