LM3528TME/NOPB TI LED Driver | 12-DSBGA | 2.7-5.5V Input, 1.2A Switch

Product Overview

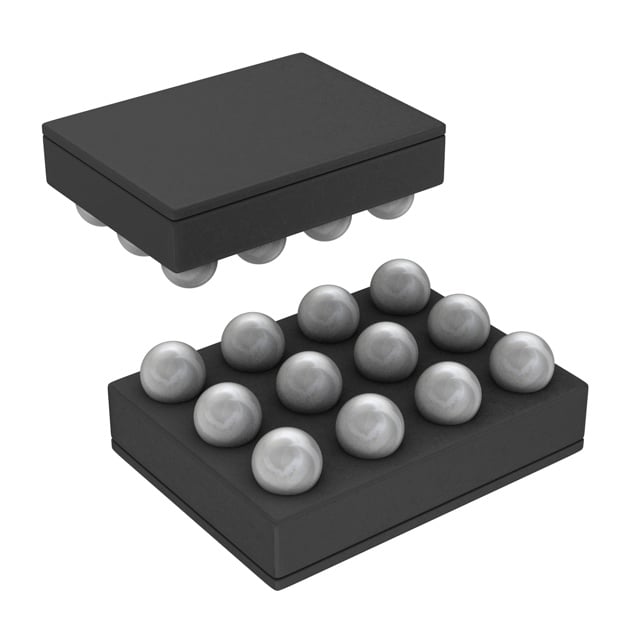

The LM3528TME/NOPB is a high-efficiency, step-up DC-DC converter from Texas Instruments, designed to drive up to 10 series white LEDs for backlighting applications. It operates from an input voltage range of 2.7V to 5.5V, making it suitable for single-cell Li-Ion or Li-Polymer battery-powered devices. The device integrates a 1.2A switch and offers a programmable output voltage up to 20V. With a fixed 1.2MHz switching frequency, the LM3528 enables the use of small external components, reducing solution size. The package is a 12-bump DSBGA (1.6mm x 1.2mm) for space-constrained designs.

Detailed Technical Specifications

Key Features

• Integrated 1.2A switch with overcurrent protection
• Programmable output voltage via external resistor divider
• 1.2MHz fixed switching frequency for small external components
• Low shutdown current (0.3 µA) for battery life extension
• Over-temperature protection
• Small 12-bump DSBGA package

Target Applications

• Smartphone and tablet LCD backlighting
• Portable media players
• Digital cameras
• GPS navigation systems
• 5G base station indicator LEDs
• Automotive dashboard backlighting

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for LM3528TME/NOPB. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

LM3528TME/NOPB 是德州儀器 (TI) 推出的一款高效率升壓 DC-DC 轉換器，專為驅動多達 10 顆串聯白光 LED 背光應用而設計。其輸入電壓範圍為 2.7V 至 5.5V，適用於單節鋰離子或鋰聚合物電池供電的設備。該器件集成了 1.2A 開關，並提供高達 20V 的可編程輸出電壓。憑藉 1.2MHz 固定開關頻率，LM3528 可使用小型外部元件，從而減小解決方案尺寸。封裝為 12 焊球 DSBGA (1.6mm x 1.2mm)，適用於空間受限的設計。

詳細技術參數

核心特性

• 集成 1.2A 開關，帶過流保護
• 通過外部電阻分壓器可編程輸出電壓
• 1.2MHz 固定開關頻率，支持小型外部元件
• 低關斷電流 (0.3 µA)，延長電池壽命
• 過溫保護
• 小型 12 焊球 DSBGA 封裝

典型應用場景

• 智能手機和平板電腦 LCD 背光
• 便攜式媒體播放器
• 數碼相機
• GPS 導航系統
• 5G 基站指示燈
• 汽車儀表盤背光

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 LM3528TME/NOPB 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
