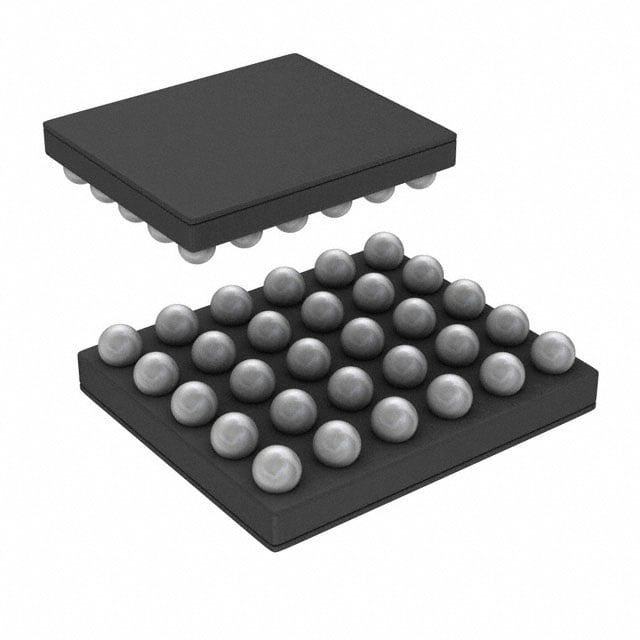

LM3538TME/NOPB TI LED Driver | 30-DSBGA | 2.5V-5.5V, 30mA per Channel

Product Overview

The LM3538TME/NOPB is a high-efficiency, programmable LED driver from Texas Instruments, designed for backlighting and general illumination applications. It features an integrated boost converter and 8 current sinks, each capable of driving up to 30mA. The device operates from a 2.5V to 5.5V input supply and supports PWM dimming for precise brightness control. Packaged in a compact 30-DSBGA (2.2mm x 2.5mm), it is ideal for space-constrained designs.

Detailed Technical Specifications

Key Features

• Integrated boost converter with 1MHz switching frequency
• 8 programmable current sinks with 30mA max per channel
• PWM dimming with 256-step resolution
• Low quiescent current (0.5µA in shutdown)
• Over-voltage and over-temperature protection
• I2C-compatible interface for control

Target Applications

• Smartphone and tablet LCD backlighting
• Automotive dashboard displays
• Portable medical devices
• 5G base station indicator LEDs
• Industrial control panel lighting

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for LM3538TME/NOPB. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

LM3538TME/NOPB 是德州儀器推出的一款高效能、可編程 LED 驅動器，專為背光照明和一般照明應用設計。它整合了升壓轉換器和 8 個電流沉，每個通道最高可驅動 30mA。該器件可在 2.5V 至 5.5V 的輸入電源下工作，並支援 PWM 調光以實現精確的亮度控制。採用緊湊的 30-DSBGA（2.2mm x 2.5mm）封裝，非常適合空間受限的設計。

詳細技術參數

核心特性

• 整合升壓轉換器，開關頻率 1MHz
• 8 個可編程電流沉，每通道最高 30mA
• PWM 調光，256 級解析度
• 低靜態電流（關斷時 0.5µA）
• 過壓和過溫保護
• I2C 相容介面進行控制

典型應用場景

• 智慧手機和平板電腦 LCD 背光
• 汽車儀表板顯示
• 可攜式醫療設備
• 5G 基地台指示燈
• 工業控制面板照明

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 LM3538TME/NOPB 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
