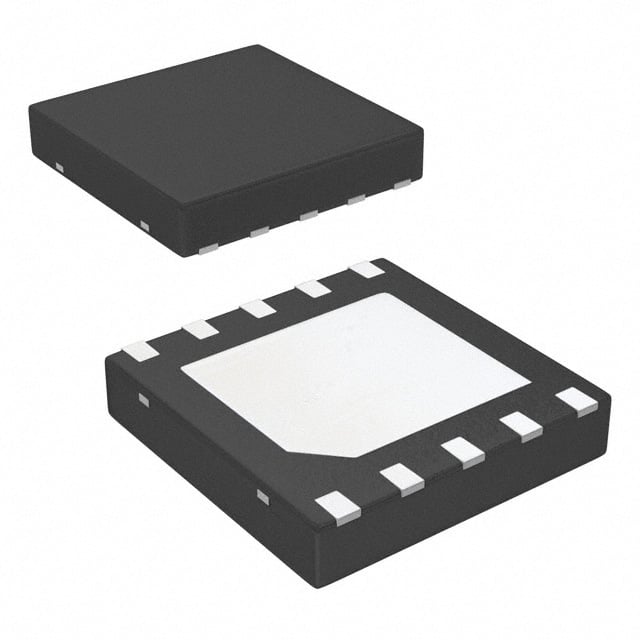

LM5113SDE/NOPB TI Gate Driver | 10-WSON (4x4) | 100V, 1.4A/2.3A

Product Overview

The LM5113SDE/NOPB is a high-voltage, high-side and low-side gate driver from Texas Instruments, designed for driving N-channel MOSFETs in synchronous buck converter and half-bridge configurations. It features a floating high-side driver capable of operating with supply voltages up to 100V, and provides 1.4A source and 2.3A sink peak drive current. The device is housed in a compact 10-WSON (4x4 mm) package, making it suitable for space-constrained power supply designs.

Detailed Technical Specifications

Key Features

• Floating high-side driver with bootstrap operation up to 100V
• 1.4A source and 2.3A sink peak drive current
• Fast propagation delays (25 ns typical)
• Matched propagation delays between high-side and low-side
• Under-voltage lockout (UVLO) for both VDD and bootstrap supply
• Shutdown input for low power consumption
• Wide operating temperature range: -40°C to +125°C
• Small 10-WSON package with exposed pad for thermal management

Target Applications

• 5G base station power supplies (e.g., rectifier modules)
• Automotive dashboard power systems (e.g., infotainment power)
• Industrial DC-DC converters (e.g., 48V to 12V)
• Telecom and networking equipment
• High-power LED lighting drivers

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for LM5113SDE/NOPB. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
