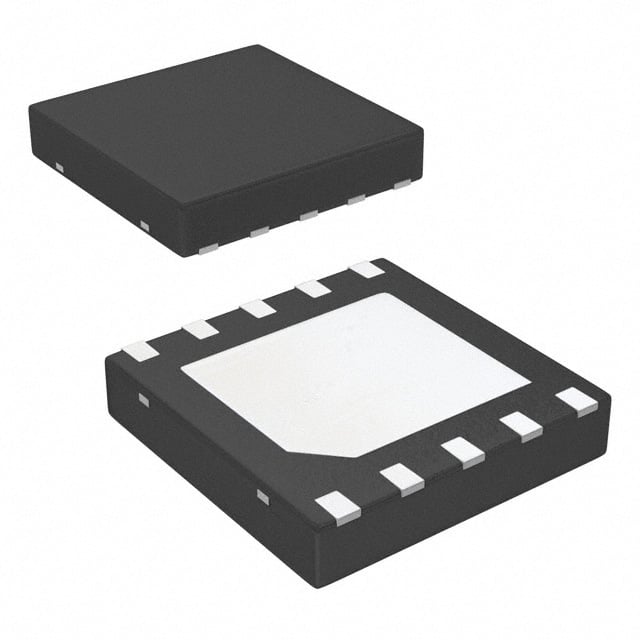

LM5113SDX/NOPB TI Gate Driver | 10-WSON (4x4) | 100V, 1.4A/1.4A

Product Overview

The LM5113SDX/NOPB is a high-voltage, high-frequency gate driver from Texas Instruments, designed for driving both high-side and low-side N-channel MOSFETs in synchronous buck or half-bridge configurations. It features a floating high-side driver capable of operating up to 100V, with a bootstrap supply voltage range up to 14V. The device provides 1.4A source and 1.4A sink peak drive current, enabling fast switching of power MOSFETs. Housed in a compact 10-pin WSON (4x4 mm) package, it is ideal for space-constrained power conversion applications.

Detailed Technical Specifications

Key Features

• Floating high-side driver up to 100V
• 1.4A peak gate drive current (source and sink)
• Bootstrap supply voltage up to 14V
• Fast propagation delays (25 ns typical)
• Under-voltage lockout (UVLO) for both high-side and low-side
• Shutdown input for low power consumption
• Compact 10-pin WSON package (4x4 mm)
• Wide operating temperature range (-40°C to +125°C)

Target Applications

• 5G base station power supplies
• Automotive dashboard power modules
• Telecom and networking equipment
• Industrial DC-DC converters
• LED lighting drivers
• Half-bridge and full-bridge converters

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for LM5113SDX/NOPB. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
