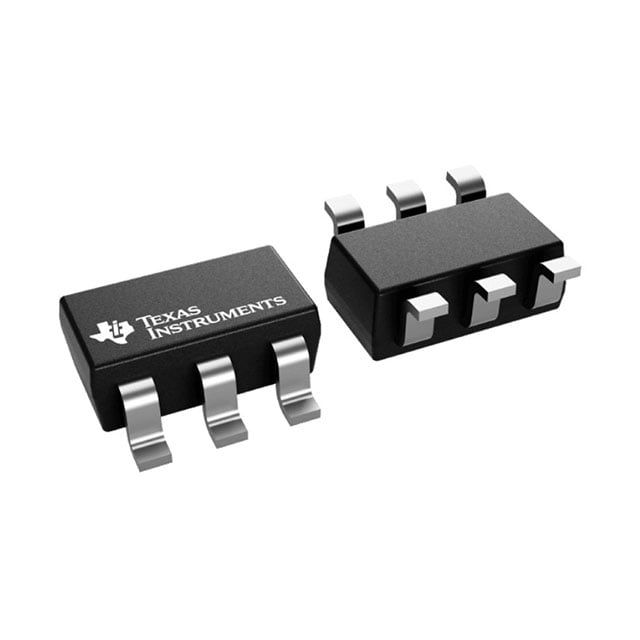

LM5114BMF/S7003094 TI Gate Driver | SOT-23-6 | 7.6A Peak, 12V UVLO

Product Overview

The LM5114BMF/S7003094 from Texas Instruments is a high-speed, low-side gate driver designed for driving MOSFETs and IGBTs in power conversion applications. Housed in a compact SOT-23-6 package, it delivers 7.6A peak source and sink current, enabling efficient switching at high frequencies. The device features a wide supply voltage range from 4.5V to 12.6V, with an integrated under-voltage lockout (UVLO) for reliable operation. Its robust design includes split gate outputs for independent turn-on and turn-off control, minimizing switching losses and EMI.

Detailed Technical Specifications

Key Features

• 7.6A peak gate drive current for fast switching
• Split gate outputs (OUTL and OUTH) for independent control
• Wide supply voltage range with UVLO protection
• Low propagation delay (25 ns typical)
• High noise immunity (CMTI > 50 kV/µs)
• Small SOT-23-6 package for space-constrained designs

Target Applications

• 5G base station power supplies (e.g., rectifier modules)
• Automotive dashboard power management (e.g., DC-DC converters)
• Industrial motor drives (e.g., servo drives)
• Solar inverters (e.g., microinverters)
• LED lighting drivers (e.g., high-power street lights)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for LM5114BMF/S7003094. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
