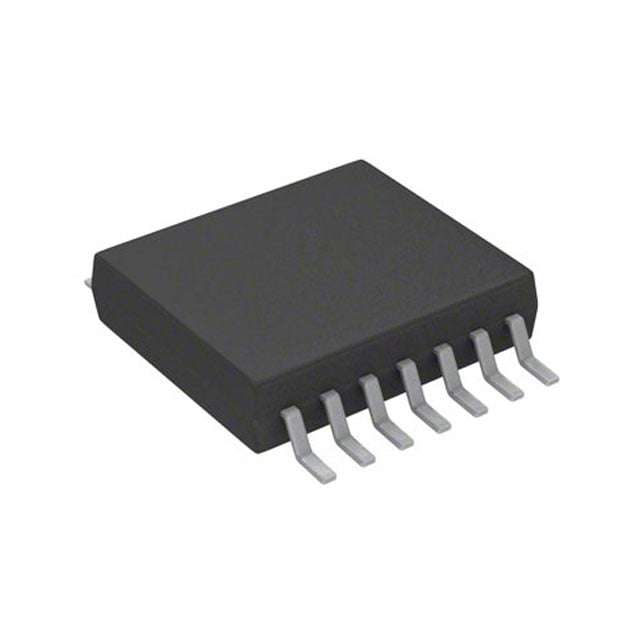

LM5156HPWPR TI DC-DC Controller | 14-HTSSOP | Wide Vin, 1.5A Gate Driver

Product Overview

The LM5156HPWPR from Texas Instruments is a versatile, wide-input voltage, non-synchronous boost controller with a 1.5A peak gate driver. It operates over a wide input voltage range of 2.97V to 16V (up to 60V with external bias) and can generate output voltages up to 50V. The device features a low quiescent current of 330 µA, making it suitable for battery-powered applications. It is available in a 14-pin HTSSOP package with PowerPAD for enhanced thermal performance.

Detailed Technical Specifications

Key Features

• Wide input voltage range: 2.97V to 16V (up to 60V with external bias)
• 1.5A peak gate driver for external MOSFET
• Adjustable switching frequency from 100 kHz to 2.2 MHz
• Low quiescent current: 330 µA
• Cycle-by-cycle current limit and hiccup mode overcurrent protection
• Programmable soft-start and UVLO
• Thermal shutdown protection
• Available in 14-pin HTSSOP with PowerPAD for improved thermal dissipation

Target Applications

• 5G base station power supplies
• Automotive dashboard displays and infotainment systems
• Industrial power supplies and battery chargers
• LED lighting drivers
• Portable and battery-powered equipment

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for LM5156HPWPR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
