LMG1205YFXR TI Gate Driver | 12-DSBGA | 5A Peak, 4.5-18V

Product Overview

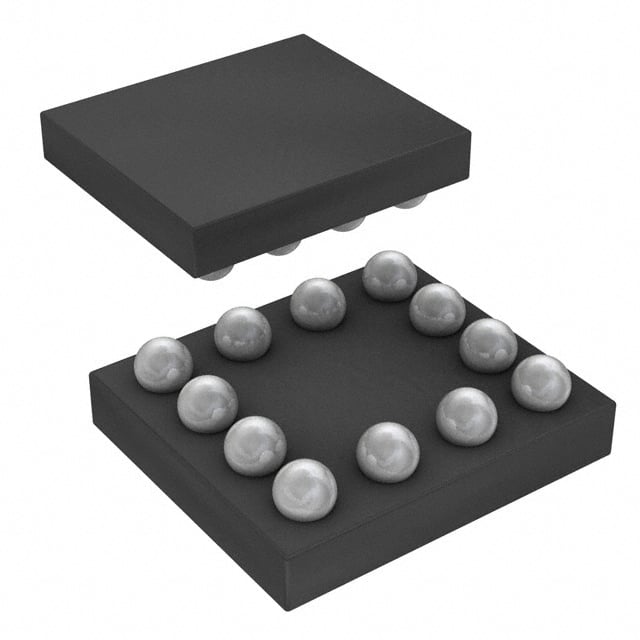

The LMG1205YFXR is a high-frequency, 100V half-bridge gate driver from Texas Instruments, designed for driving GaN FETs and MOSFETs in power conversion applications. Housed in a compact 12-DSBGA package, it delivers 5A peak sink/source current with propagation delays as low as 10ns, enabling efficient switching at frequencies up to 10MHz. Its integrated bootstrap diode and under-voltage lockout (UVLO) ensure reliable operation in demanding environments.

Detailed Technical Specifications

Key Features

• 5A peak gate drive for fast switching
• Integrated bootstrap diode
• UVLO on both VDD and bootstrap supply
• Cross-conduction prevention logic
• Enable pin for shutdown control
• Small 12-DSBGA package saves board space

Target Applications

• 5G base station power amplifiers (e.g., TI TPSM8D6C24 power module)
• Automotive DC-DC converters (e.g., 48V to 12V for infotainment dashboards)
• Envelope tracking power supplies for RF transmitters
• Class-D audio amplifiers (e.g., TI TPA3255)
• High-frequency point-of-load (POL) converters
