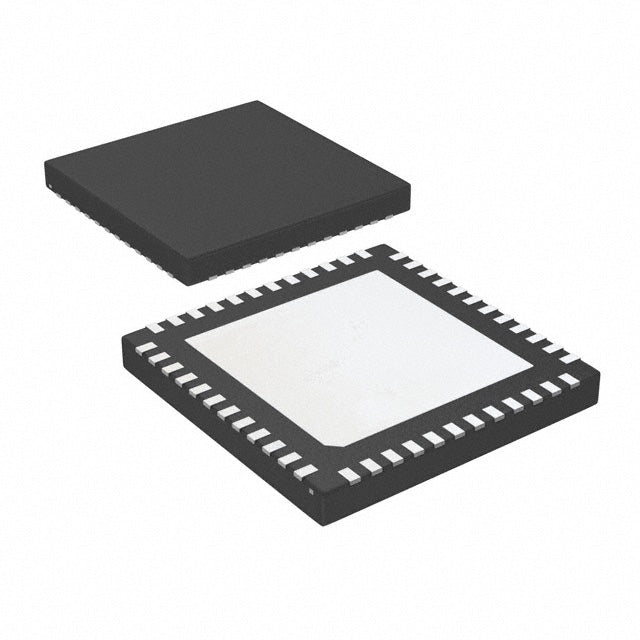

LMH0040SQE/NOPB TI Video Amplifier | 48-WQFN (7x7) | 3G HD-SDI, 150mW

Product Overview

The LMH0040SQE/NOPB is a high-performance cable driver from Texas Instruments, designed for SMPTE 292M and SMPTE 259M serial digital video interfaces. It supports data rates up to 2.97 Gbps, making it ideal for 3G HD-SDI, HD-SDI, and SD-SDI applications. The device features adjustable output swing, low power consumption of 150 mW typical, and is housed in a compact 48-WQFN (7x7 mm) package. It includes an integrated cable driver with a 75-ohm output impedance, eliminating the need for external components.

Detailed Technical Specifications

Key Features

• Supports SMPTE 292M (1.485 Gbps) and SMPTE 259M (270 Mbps)
• Integrated 75-ohm output driver
• Adjustable output swing via external resistor
• Low power consumption: 150 mW typical
• Single 3.3V supply operation
• Power-down mode for power saving
• Small footprint 48-WQFN package

Target Applications

• 3G/HD/SD-SDI broadcast video equipment
• Video routers and switchers (e.g., Grass Valley Kayenne)
• Professional cameras (e.g., Sony HDC series)
• Video distribution amplifiers
• 5G base station video backhaul
• Medical imaging systems (e.g., endoscopy)
• Digital signage and video walls

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for LMH0040SQE/NOPB. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
