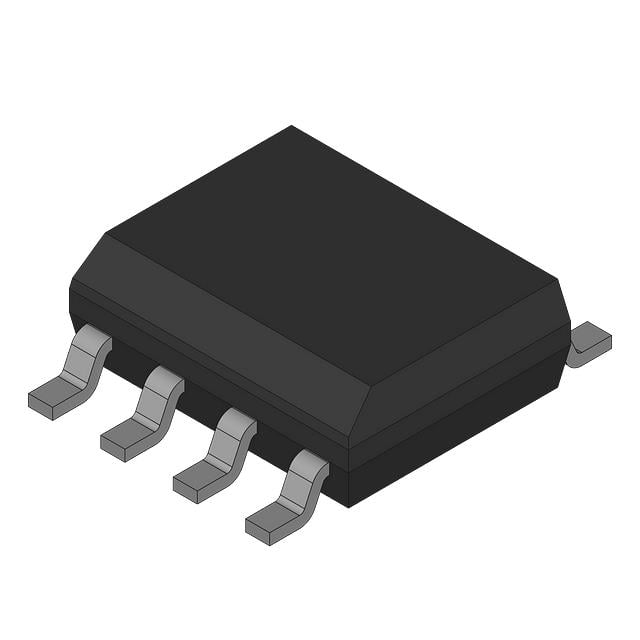

LMH6714MA-TI TI Video Amplifier | 400MHz, 1800V/μs

Product Overview

The LMH6714MA-TI is a high-speed video operational amplifier from Texas Instruments, designed for demanding video and imaging applications. It offers a wide bandwidth of 400 MHz and a high slew rate of 1800 V/μs, making it ideal for high-resolution video processing, test equipment, and communication systems. The device operates from a single 5V supply or dual supplies up to ±5V, providing flexibility in various system designs.

Detailed Technical Specifications

Key Features

• High bandwidth: 400 MHz
• High slew rate: 1800 V/μs
• Low distortion: -72 dBc at 5 MHz
• Fast settling time: 15 ns to 0.1%
• Single or dual supply operation
• Output short-circuit protection

Target Applications

• Video amplifiers for broadcast and professional video equipment
• High-speed ADC drivers for 5G base station receivers
• Active filters in medical imaging systems
• Pulse amplifiers in radar and lidar systems
• Test and measurement equipment like oscilloscope front-ends

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for LMH6714MA-TI. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

LMH6714MA-TI 是德州儀器推出的一款高速視頻運算放大器，專為高性能視頻和成像應用設計。它提供 400 MHz 的寬帶寬和 1800 V/μs 的高壓擺率，非常適合高分辨率視頻處理、測試設備和通信系統。該器件可在單 5V 電源或高達 ±5V 的雙電源下工作，為各種系統設計提供靈活性。

詳細技術參數

核心特性

• 高帶寬：400 MHz
• 高壓擺率：1800 V/μs
• 低失真：-72 dBc @ 5 MHz
• 快速建立時間：15 ns 至 0.1%
• 單電源或雙電源供電
• 輸出短路保護

典型應用場景

• 廣播和專業視頻設備中的視頻放大器
• 5G 基站接收器中的高速 ADC 驅動器
• 醫療成像系統中的有源濾波器
• 雷達和激光雷達系統中的脈衝放大器
• 測試與測量設備，如示波器前端

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 LMH6714MA-TI 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
