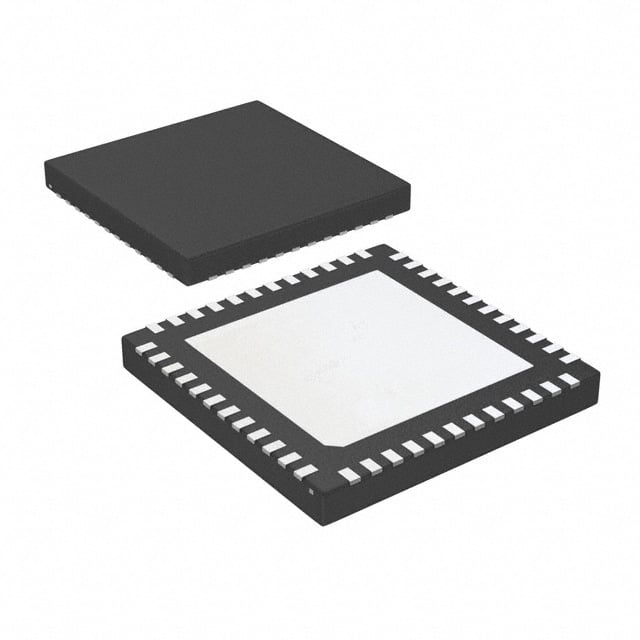

LMK03000ISQ/NOPB TI Clock Conditioner | 48-WQFN (7x7) | 3 PLLs, 14 Outputs

Product Overview

The LMK03000ISQ/NOPB is a high-performance clock conditioner from Texas Instruments, designed to provide low-jitter, precision clock conditioning for a wide range of applications. It integrates three independent PLLs (Phase-Locked Loops) with VCOs (Voltage-Controlled Oscillators) and 14 programmable outputs, making it ideal for systems requiring multiple synchronized clock domains. The device operates from a 3.3V supply and is housed in a compact 48-pin WQFN (7x7 mm) package. Its advanced architecture enables jitter cleaning, frequency synthesis, and clock distribution with exceptional phase noise performance.

Detailed Technical Specifications

Key Features

• Three independent PLLs with integrated VCOs
• 14 programmable outputs supporting LVDS, LVPECL, and LVCMOS
• Ultra-low jitter: 0.2 ps RMS (12 kHz – 20 MHz)
• Excellent phase noise: -150 dBc/Hz at 100 kHz offset (1 GHz)
• Flexible input reference: single-ended or differential
• Automatic reference switching with holdover
• SPI interface for configuration
• Power consumption: 1.5 W (typical)

Target Applications

• 5G base stations (e.g., clock distribution for massive MIMO)
• Wireless infrastructure (e.g., small cells, remote radio heads)
• Data center switches and routers (e.g., 400G Ethernet)
• Test and measurement equipment (e.g., arbitrary waveform generators)
• Medical imaging systems (e.g., MRI, CT scanners)
• Automotive radar and ADAS (e.g., 77 GHz radar modules)
