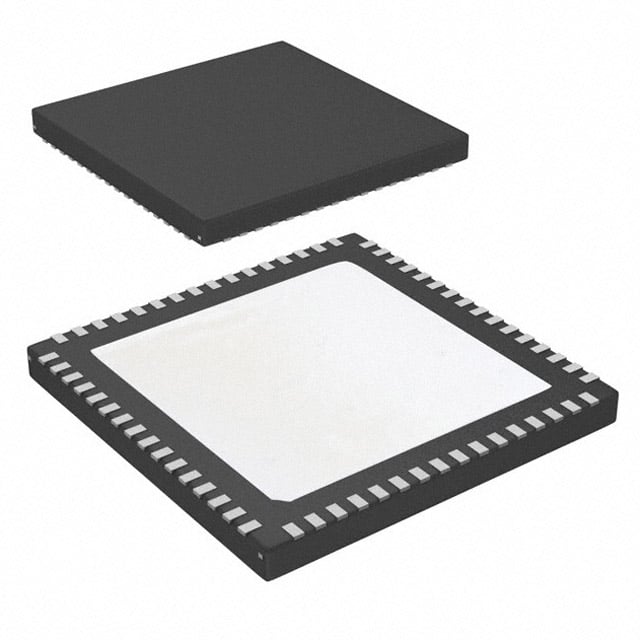

LMK03806BISQ/NOPB TI Clock Generator | 64-WQFN (9x9) | 14 Outputs, 0.3ps RMS Jitter

Product Overview

The LMK03806BISQ/NOPB from Texas Instruments is a high-performance clock generator and jitter cleaner designed for demanding applications. It integrates a low-noise PLL, VCO, and 14 programmable outputs, delivering ultra-low jitter (0.3 ps RMS typical) and flexible frequency synthesis. Housed in a compact 64-WQFN (9x9 mm) package, it supports frequencies up to 3.1 GHz and offers multiple output standards (LVDS, LVPECL, HCSL, LVCMOS). Ideal for communications infrastructure, data converters, and high-speed digital systems.

Detailed Technical Specifications

Key Features

• Ultra-low jitter: 0.3 ps RMS typical
• 14 differential or LVCMOS outputs
• Integrated VCO with frequency up to 3.1 GHz
• Programmable output formats: LVDS, LVPECL, HCSL, LVCMOS
• On-chip loop filter for simplified design
• SPI interface for configuration
• Fail-safe input with holdover

Target Applications

• 5G base stations (e.g., clock distribution for massive MIMO)
• Wireless infrastructure (e.g., small cells, remote radio heads)
• Data converters (e.g., ADC/DAC clocking for radar, test equipment)
• High-speed digital systems (e.g., FPGA, ASIC reference clocks)
• Automotive ADAS (e.g., radar sensor clocking)
• Industrial automation (e.g., high-speed data acquisition)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for LMK03806BISQ/NOPB. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
