LMK03806BISQE/NOPB TI Clock Generator | 64-WQFN (9x9) | 14 Outputs, 0.3 ps RMS Jitter

Product Overview

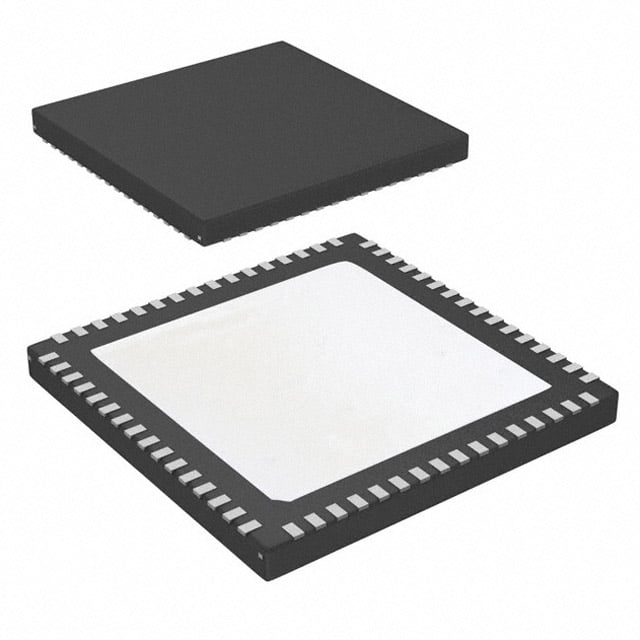

The LMK03806BISQE/NOPB is a high-performance clock generator from Texas Instruments, designed to provide ultra-low jitter and multiple output frequencies for demanding applications. It integrates a PLL (Phase-Locked Loop) and VCO (Voltage-Controlled Oscillator) to generate up to 14 differential or LVCMOS clock outputs from a single reference input. The device operates over a wide frequency range and is housed in a compact 64-pin WQFN (9x9 mm) package, making it suitable for space-constrained designs.

Detailed Technical Specifications

Key Features

• Ultra-low jitter: 0.3 ps RMS (12 kHz to 20 MHz)
• Up to 14 clock outputs with individual frequency dividers
• Integrated VCO with frequency range 2.5 to 2.8 GHz
• Supports multiple output standards: LVDS, LVPECL, HCSL, LVCMOS
• Programmable via SPI or I2C interface
• On-chip non-volatile memory for configuration storage
• Redundant reference inputs with automatic switchover
• Low power consumption: 1.2 W (typical)

Target Applications

• 5G base stations (e.g., massive MIMO, remote radio units)
• Wireless infrastructure (e.g., small cells, backhaul)
• Data center switches and routers (e.g., 400G Ethernet)
• Test and measurement equipment (e.g., oscilloscopes, signal generators)
• Medical imaging (e.g., ultrasound, MRI)
• Industrial automation (e.g., high-speed data acquisition)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for LMK03806BISQE/NOPB. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
