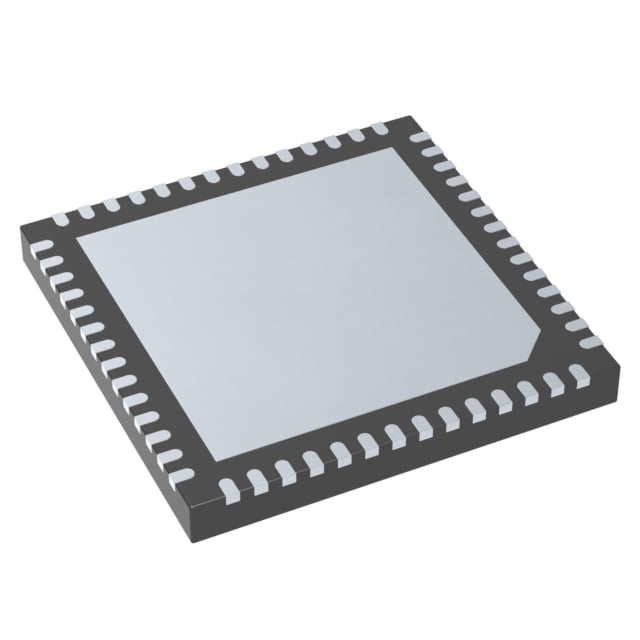

LMK04610RTQT TI Clock Generator | 56-QFN (8x8) | 15 Outputs, Jitter <100fs

Product Overview

The LMK04610RTQT is a high-performance clock generator and jitter cleaner from Texas Instruments, designed for demanding applications requiring ultra-low phase noise and flexible frequency synthesis. It integrates a dual-loop PLL architecture with a voltage-controlled oscillator (VCO) and provides up to 15 differential or 30 single-ended clock outputs. The device operates from a 3.3V supply and supports output frequencies up to 3.1 GHz. Its advanced jitter cleaning capability reduces additive jitter to below 100 fs RMS, making it ideal for communications infrastructure, test and measurement, and data converter clocking.

Detailed Technical Specifications

Key Features

• Ultra-low jitter: < 100 fs RMS (12 kHz to 20 MHz)
• Dual-loop PLL with integrated VCO
• Up to 15 differential clock outputs
• Programmable output formats: LVDS, LVPECL, HCSL, LVCMOS
• Supports hitless reference switching and holdover
• SPI/I2C interface for configuration
• On-chip non-volatile memory (NVM) for automatic startup

Target Applications

• 5G base stations (e.g., massive MIMO, remote radio units)
• Wireless infrastructure (e.g., small cells, backhaul)
• Data converters (ADC/DAC) clocking
• Test and measurement equipment (e.g., spectrum analyzers, signal generators)
• Medical imaging (e.g., MRI, CT scanners)
• Industrial automation and control systems

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for LMK04610RTQT. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

LMK04610RTQT 是德州儀器（TI）推出的一款高性能時鐘發生器和抖動淨化器，專為需要超低相位噪聲和靈活頻率合成的苛刻應用而設計。它集成了雙環路 PLL 架構和壓控振盪器（VCO），可提供多達 15 個差分或 30 個單端時鐘輸出。該器件在 3.3V 電源下工作，支持高達 3.1 GHz 的輸出頻率。其先進的抖動淨化能力可將附加抖動降低至 100 fs RMS 以下，非常適合通信基礎設施、測試測量和數據轉換器時鐘應用。

詳細技術參數

核心特性

• 超低抖動：< 100 fs RMS（12 kHz 至 20 MHz）
• 雙環路 PLL 集成 VCO
• 多達 15 個差分時鐘輸出
• 可編程輸出格式：LVDS, LVPECL, HCSL, LVCMOS
• 支持無中斷參考切換和保持功能
• SPI/I2C 接口用於配置
• 片上非易失性存儲器（NVM）用於自動啟動

典型應用場景

• 5G 基站（例如大規模 MIMO、遠程射頻單元）
• 無線基礎設施（例如小基站、回傳）
• 數據轉換器（ADC/DAC）時鐘
• 測試測量設備（例如頻譜分析儀、信號發生器）
• 醫療成像（例如 MRI、CT 掃描儀）
• 工業自動化和控制系統

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 LMK04610RTQT 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
