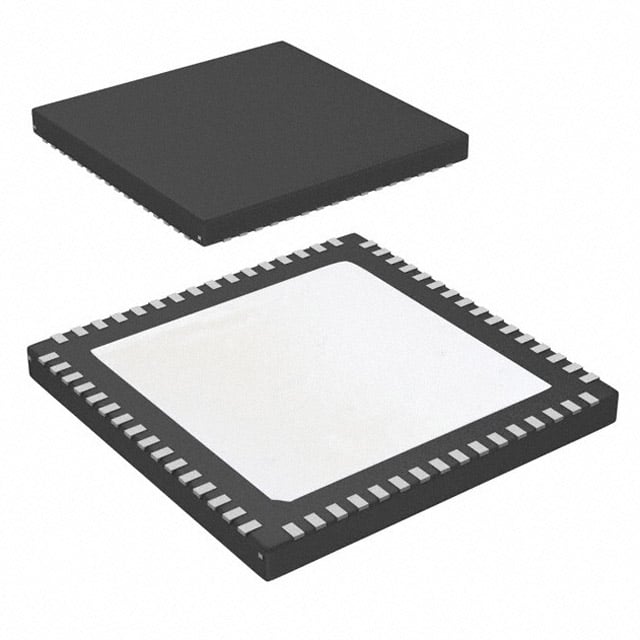

LMK04803BISQE/NOPB TI Clock Jitter Cleaner | 64-WQFN (9x9) | Ultra-Low Jitter, Dual PLL
Default Title：$0.00
🧪 SAMPLE SUPPORT
✅ 100% Original & Traceable
🚀 Inquiry Today, Ship Today
🛡️ Escrow.com Secured Payment
Product Overview
The LMK04803BISQE/NOPB from Texas Instruments is a high-performance clock jitter cleaner and frequency synthesizer designed for demanding applications requiring ultra-low phase noise and jitter. It integrates dual phase-locked loops (PLLs) with voltage-controlled oscillators (VCOs) and provides up to 14 differential clock outputs. The device operates from a 3.3V supply and is housed in a compact 64-pin WQFN (9x9 mm) package. It supports frequencies up to 3.1 GHz and offers programmable output formats including LVDS, LVPECL, and LVCMOS.
Detailed Technical Specifications
| Parameter | Value |
|---|---|
| Supply Voltage | 3.3V ± 5% |
| PLL Phase Noise (100 Hz offset, 245.76 MHz) | -110 dBc/Hz |
| RMS Jitter (12 kHz to 20 MHz) | 90 fs (typical) |
| Output Frequency Range | Up to 3.1 GHz |
| Number of Outputs | 14 differential |
| Output Logic Formats | LVDS, LVPECL, LVCMOS |
| Package | 64-WQFN (9x9 mm) |
| Operating Temperature | -40°C to +85°C |
Key Features
- Ultra-low jitter: 90 fs RMS (12 kHz–20 MHz)
- Dual PLL architecture with integrated VCOs
- Supports jitter cleaning and frequency synthesis
- 14 differential outputs with programmable formats
- Integrated loop filters for reduced BOM
- SPI interface for configuration
- Holdover mode for holdover applications
Target Applications
The LMK04803BISQE/NOPB is ideal for high-speed data converters, 5G base stations (e.g., Massive MIMO transceivers), wireless infrastructure (e.g., remote radio heads), medical imaging (e.g., ultrasound systems), test and measurement equipment (e.g., arbitrary waveform generators), and networking (e.g., 100G Ethernet switches).
Global Supply Chain & Wholesale Solutions
At Jasin Chip, we provide professional supply chain and wholesale solutions for LMK04803BISQE/NOPB. Our core advantages include:
- 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
- In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
- HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
- Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
- BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.
Quality Assurance & Compliance
Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.
- 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
- RoHS Compliant: All electronic components comply with international environmental and safety standards.
- Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
產品概述
LMK04803BISQE/NOPB 是德州儀器（TI）推出的一款高性能時鐘抖動清除器與頻率合成器，專為需要超低相位噪聲和抖動的應用而設計。它集成了雙鎖相環（PLL）與壓控振盪器（VCO），並提供多達14路差分時鐘輸出。器件工作在3.3V電源下，採用緊湊的64引腳WQFN（9x9 mm）封裝。支持高達3.1 GHz的頻率，並提供可編程輸出格式，包括LVDS、LVPECL和LVCMOS。
詳細技術參數
| 參數 | 數值 |
|---|---|
| 電源電壓 | 3.3V ± 5% |
| PLL相位噪聲（100 Hz偏移，245.76 MHz） | -110 dBc/Hz |
| RMS抖動（12 kHz至20 MHz） | 90 fs（典型值） |
| 輸出頻率範圍 | 高達3.1 GHz |
| 輸出數量 | 14路差分 |
| 輸出邏輯格式 | LVDS、LVPECL、LVCMOS |
| 封裝 | 64-WQFN（9x9 mm） |
| 工作溫度 | -40°C 至 +85°C |
核心特性
- 超低抖動：90 fs RMS（12 kHz–20 MHz）
- 雙PLL架構，集成VCO
- 支持抖動清除和頻率合成
- 14路差分輸出，可編程格式
- 集成環路濾波器，減少BOM
- SPI接口用於配置
- 保持模式（Holdover）
典型應用場景
LMK04803BISQE/NOPB 適用於高速數據轉換器、5G基站（如大規模MIMO收發器）、無線基礎設施（如遠程射頻頭）、醫療成像（如超聲系統）、測試與測量設備（如任意波形發生器）以及網絡設備（如100G以太網交換機）。
環球供應鏈與批發合作夥伴方案
在 Jasin Chip，我們為 LMK04803BISQE/NOPB 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：
- 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
- 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
- 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
- Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
- BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。
品質保證與合規
Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。
- 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
- 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
- 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。
以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
