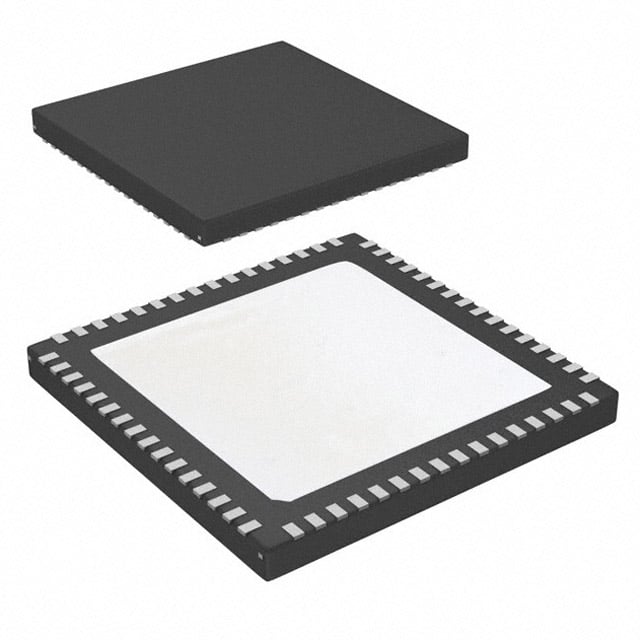

LMK04806BISQE/NOPB TI Clock Jitter Cleaner | 64-WQFN (9x9) | Ultra-Low Jitter, Dual PLL

Product Overview

The LMK04806BISQE/NOPB from Texas Instruments is a high-performance clock jitter cleaner and synthesizer designed for demanding communication and data conversion applications. It integrates dual phase-locked loops (PLLs) with voltage-controlled oscillators (VCOs) to provide ultra-low jitter clock generation and cleaning. Housed in a compact 64-pin WQFN (9x9 mm) package, this device supports multiple outputs with programmable frequencies and formats, making it ideal for systems requiring precise timing.

Detailed Technical Specifications

Key Features

• Ultra-low jitter: 50 fs RMS typical
• Dual PLL architecture for jitter cleaning and frequency synthesis
• Programmable output dividers and delays
• Supports LVDS, LVPECL, and LVCMOS output formats
• Integrated VCO with low phase noise
• SPI interface for configuration

Target Applications

• 5G base stations (e.g., massive MIMO transceivers)
• Wireless infrastructure (e.g., remote radio units)
• Data converters (e.g., ADC/DAC clocking in radar systems)
• Test and measurement equipment (e.g., spectrum analyzers)
• Medical imaging (e.g., ultrasound beamforming)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for LMK04806BISQE/NOPB. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

LMK04806BISQE/NOPB 是德州儀器（TI）推出的一款高性能時鐘抖動清除與合成器，專為要求嚴苛的通訊和數據轉換應用而設計。它集成了雙鎖相環（PLL）和壓控振盪器（VCO），可提供超低抖動的時鐘生成與清除功能。該器件採用緊湊的 64 引腳 WQFN（9x9 mm）封裝，支持多路輸出，頻率和格式可編程，非常適合需要精確時序的系統。

詳細技術參數

核心特性

• 超低抖動：典型 RMS 抖動 50 fs
• 雙 PLL 架構，支持抖動清除和頻率合成
• 可編程輸出分頻器和延遲
• 支持 LVDS、LVPECL 和 LVCMOS 輸出格式
• 集成低相位噪聲 VCO
• SPI 接口用於配置

典型應用場景

• 5G 基站（例如大規模 MIMO 收發器）
• 無線基礎設施（例如遠程射頻單元）
• 數據轉換器（例如雷達系統中的 ADC/DAC 時鐘）
• 測試與測量設備（例如頻譜分析儀）
• 醫療成像（例如超聲波波束成形）

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 LMK04806BISQE/NOPB 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
