LMK04816BISQE/NOPB TI Clock Jitter Cleaner | 64-WQFN (9x9) | Ultra-Low Jitter, Dual PLL

Product Overview

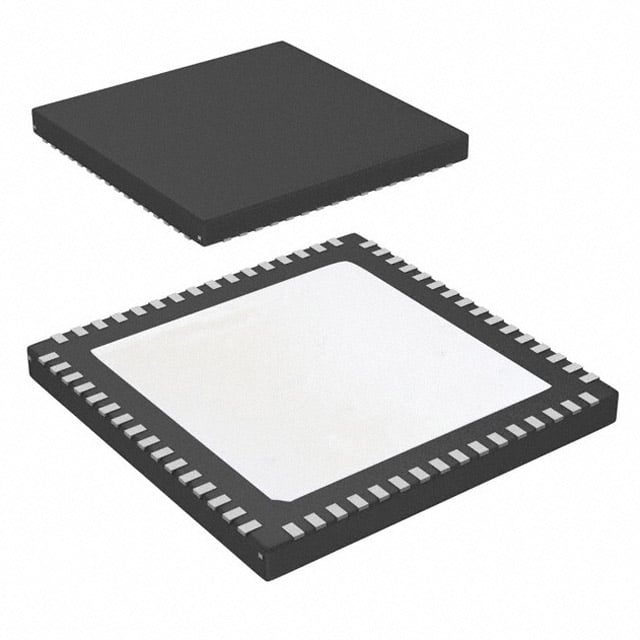

The LMK04816BISQE/NOPB from Texas Instruments is a high-performance clock jitter cleaner and synthesizer designed for demanding communication and data conversion applications. It integrates dual phase-locked loops (PLLs) with voltage-controlled oscillators (VCOs) to provide ultra-low jitter clock generation and cleaning. The device operates from a 3.3V supply and is housed in a compact 64-pin WQFN (9x9 mm) package, making it suitable for space-constrained designs.

Detailed Technical Specifications

Key Features

• Ultra-low jitter: <100 fs RMS (12 kHz to 20 MHz)
• Dual PLL architecture with integrated VCOs
• Programmable output dividers (1 to 1045)
• Supports multiple output formats: LVDS, LVPECL, LVCMOS, HSTL
• Integrated loop filters for reduced external component count
• SPI interface for configuration
• Holdover mode for holdover during reference loss

Target Applications

• 5G base stations (e.g., massive MIMO transceivers)
• Wireless infrastructure (e.g., remote radio units)
• Data converters (e.g., ADC/DAC clocking for radar systems)
• Test and measurement equipment (e.g., spectrum analyzers)
• Medical imaging (e.g., ultrasound beamforming)
• Automotive radar (e.g., 77 GHz radar modules)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for LMK04816BISQE/NOPB. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
