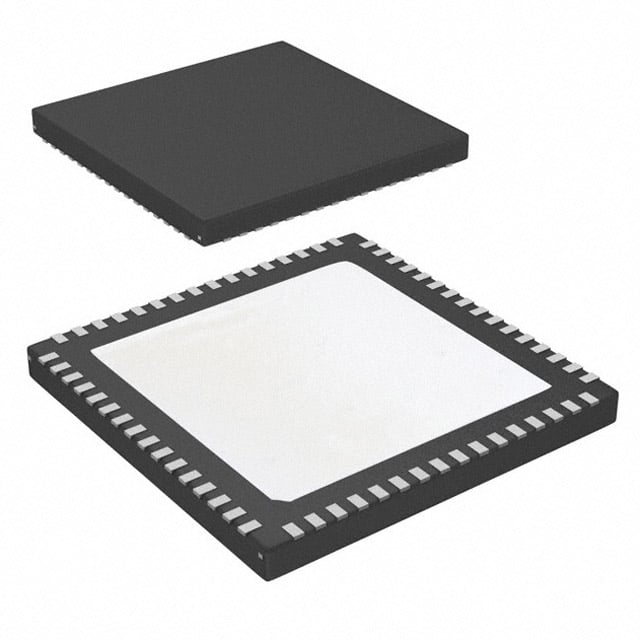

LMK04821NKDT TI Clock Jitter Cleaner | 64-WQFN (9x9) | Dual PLL, 14 Outputs

Product Overview

The LMK04821NKDT from Texas Instruments is a high-performance clock jitter cleaner and generator with dual PLLs and 14 differential outputs. It is designed to provide ultra-low jitter clock synthesis and cleaning for demanding applications such as wireless infrastructure, data converters, and networking. The device integrates two independent PLLs with VCOs, supporting frequencies up to 3.1 GHz, and offers flexible output configurations with programmable output formats (LVDS, LVPECL, HCSL, etc.). The 64-pin WQFN package (9x9 mm) enables compact board design.

Detailed Technical Specifications

Key Features

• Ultra-low jitter: <100 fs RMS (12 kHz–20 MHz)
• Dual PLL architecture with integrated VCOs
• 14 differential outputs with programmable formats
• Supports jitter cleaning and frequency synthesis
• SPI interface for configuration
• Holdover mode for holdover applications
• Low power consumption: 1.2 W typical

Target Applications

• 5G base stations (e.g., Massive MIMO, gNodeB)
• Wireless infrastructure (e.g., small cells, remote radio heads)
• Data converters (e.g., ADC/DAC clocking for radar, test equipment)
• Networking (e.g., switches, routers, 100G Ethernet)
• Medical imaging (e.g., ultrasound, CT scanners)
• Industrial automation (e.g., high-speed data acquisition)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for LMK04821NKDT. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
