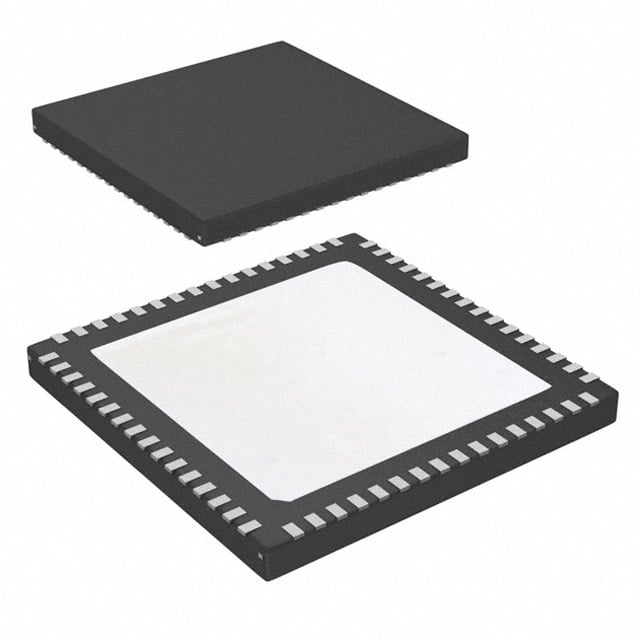

LMK04826BISQ/NOPB TI Clock Jitter Cleaner | 64-WQFN (9x9) | Dual PLL, 14 Outputs

Product Overview

The LMK04826BISQ/NOPB from Texas Instruments is a high-performance clock jitter cleaner and synthesizer designed for demanding applications requiring ultra-low phase noise and jitter. It integrates dual PLLs (Phase-Locked Loops) with VCOs (Voltage-Controlled Oscillators) and provides up to 14 differential clock outputs. The device operates from a 3.3V supply and is housed in a compact 64-pin WQFN (9x9 mm) package. It supports frequencies up to 3.1 GHz and offers flexible output formats including LVDS, LVPECL, and LVCMOS. The LMK04826BISQ/NOPB is ideal for use in wireless infrastructure, data converters, and high-speed digital systems.

Detailed Technical Specifications

Key Features

• Ultra-low jitter: 45 fs RMS (12 kHz to 20 MHz)
• Dual PLL architecture with integrated VCOs
• 14 differential clock outputs with programmable formats
• Supports jitter cleaning and frequency synthesis
• On-chip loop filters for reduced BOM
• SPI interface for configuration
• Industrial temperature range

Target Applications

• 5G base stations (e.g., Massive MIMO, small cells)
• Wireless infrastructure (e.g., remote radio units)
• Data converters (e.g., ADC/DAC clocking)
• High-speed digital systems (e.g., FPGA, ASIC clocking)
• Test and measurement equipment
• Medical imaging systems

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for LMK04826BISQ/NOPB. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
