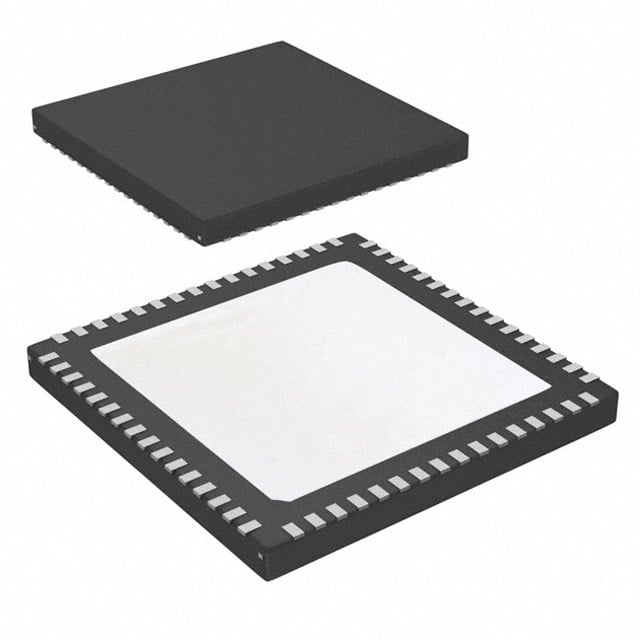

LMK04906BISQE/NOPB TI Clock Generator | 64-WQFN (9x9) | 6 Outputs, 2.5GHz

Product Overview

The LMK04906BISQE/NOPB from Texas Instruments is a high-performance clock generator and jitter cleaner designed for demanding applications. It integrates a low-noise PLL, VCO, and clock distribution with up to 6 differential outputs. The device supports frequencies up to 2.5 GHz and provides ultra-low jitter (<100 fs RMS) for high-speed data converters, FPGAs, and networking equipment. Housed in a compact 64-pin WQFN (9x9 mm) package, it operates over a wide temperature range (-40°C to +85°C) and requires minimal external components.

Detailed Technical Specifications

Key Features

• Ultra-low jitter clock generation and cleaning
• Integrated VCO with frequency range 2.5–5.0 GHz
• Programmable output formats: LVPECL, LVDS, HCSL
• Fractional-N PLL with fine frequency resolution
• Holdover mode for holdover applications
• SPI/I2C interface for configuration
• On-chip non-volatile memory (EEPROM) for auto-boot
• Small footprint 9x9 mm QFN package

Target Applications

• 5G base stations (e.g., massive MIMO transceivers)
• Wireless infrastructure (e.g., remote radio units)
• Data converters (e.g., ADC12DJ3200, DAC38RF82)
• FPGA reference clocks (e.g., Xilinx RFSoC, Intel Arria 10)
• Test and measurement equipment (e.g., oscilloscopes, signal generators)
• Networking switches and routers (e.g., 400G Ethernet)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for LMK04906BISQE/NOPB. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
