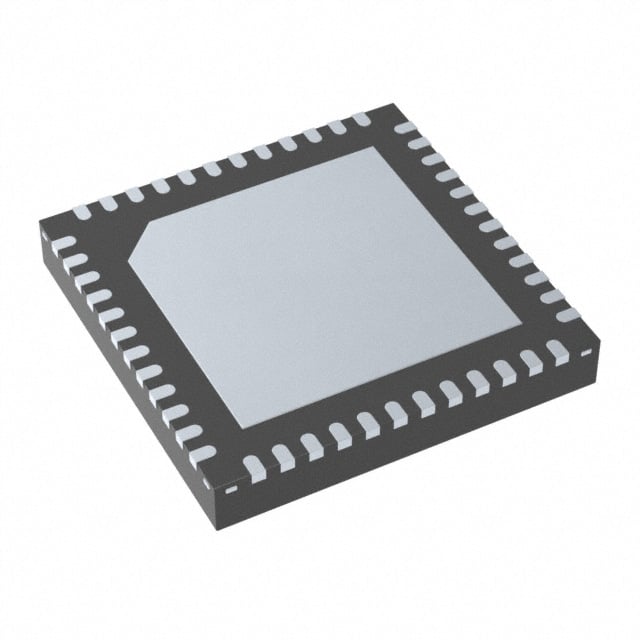

LMK05318BTRGZRQ1 TI Clock Jitter Cleaner | 48-VQFN (7x7) | Ultra-Low Jitter, 14 Outputs

Product Overview

The LMK05318BTRGZRQ1 is a high-performance clock jitter cleaner and synthesizer from Texas Instruments, designed for demanding applications requiring ultra-low jitter and phase noise. Housed in a compact 48-VQFN (7x7 mm) package, this device integrates a dual-loop PLL architecture with a high-performance voltage-controlled oscillator (VCO) to deliver exceptional clock cleaning and frequency synthesis. It supports up to 14 differential or single-ended outputs, making it ideal for clock distribution in complex systems.

Detailed Technical Specifications

Key Features

• Ultra-low jitter: <100 fs RMS (12 kHz–20 MHz)
• Dual-loop PLL with integrated VCO for jitter cleaning
• 14 programmable outputs (LVDS, LVPECL, HCSL, LVCMOS)
• Supports hitless reference switching with phase build-out
• I2C/SPI programmable with EEPROM for configuration storage
• Compliant with JEDEC JESD204B and JESD204C standards

Target Applications

• 5G base stations (e.g., massive MIMO, remote radio units)
• Automotive ADAS and infotainment systems (e.g., dashboard clusters)
• Data center switches and routers
• Test and measurement equipment
• FPGA and ASIC clocking solutions

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for LMK05318BTRGZRQ1. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

LMK05318BTRGZRQ1 是德州儀器（TI）推出的一款高性能時鐘抖動淨化器與合成器，專為需要超低抖動和相位噪聲的苛刻應用而設計。該器件採用緊湊的 48-VQFN（7x7 mm）封裝，集成雙環路 PLL 架構與高性能壓控振盪器（VCO），可提供卓越的時鐘淨化與頻率合成能力。支持多達 14 個差分或單端輸出，非常適合複雜系統中的時鐘分配。

詳細技術參數

核心特性

• 超低抖動：<100 fs RMS（12 kHz–20 MHz）
• 雙環路 PLL 集成 VCO，實現抖動淨化
• 14 個可編程輸出（LVDS、LVPECL、HCSL、LVCMOS）
• 支持無中斷參考切換，帶相位構建
• I2C/SPI 可編程，內置 EEPROM 存儲配置
• 符合 JEDEC JESD204B 和 JESD204C 標準

典型應用場景

• 5G 基站（如大規模 MIMO、遠程射頻單元）
• 汽車 ADAS 與信息娛樂系統（如儀表盤集群）
• 數據中心交換機與路由器
• 測試與測量設備
• FPGA 和 ASIC 時鐘解決方案

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 LMK05318BTRGZRQ1 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
