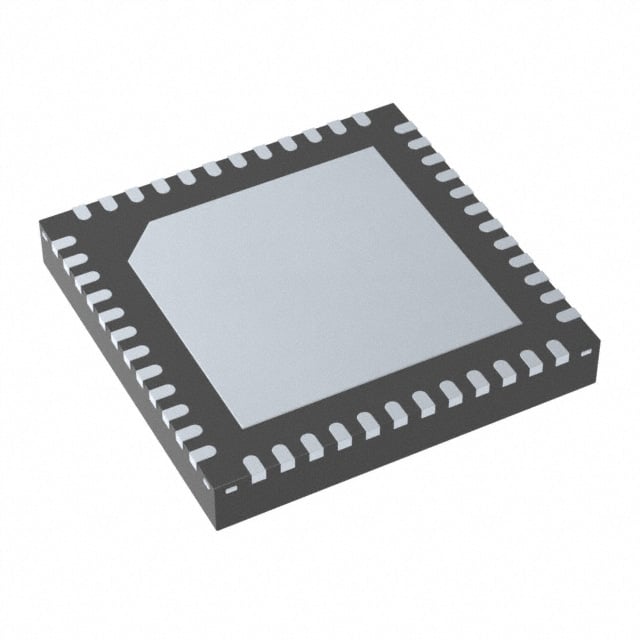

LMK05318RGZT TI Clock Generator | 48-VQFN (7x7) | 15 Outputs, 0.1ps RMS Jitter

Product Overview

The LMK05318RGZT is a high-performance clock generator from Texas Instruments, designed for demanding applications requiring ultra-low jitter and flexible frequency synthesis. Housed in a compact 48-VQFN (7x7 mm) package, this device integrates two independent PLLs, each with a VCO, and provides up to 15 differential or 30 single-ended clock outputs. It supports frequencies from 1 Hz to 3.1 GHz, making it suitable for a wide range of systems including 5G infrastructure, data centers, and industrial automation.

Detailed Technical Specifications

Key Features

• Ultra-low jitter: 0.1 ps RMS typical (12 kHz to 20 MHz)
• Two independent PLLs with integrated VCOs
• Up to 15 differential clock outputs (LVPECL, LVDS, HCSL, etc.)
• Supports JESD204B SYSREF and SYSREF repeat
• Programmable output format and amplitude
• On-chip non-volatile memory for configuration storage
• SPI/I2C interface for dynamic control

Target Applications

• 5G base stations (e.g., massive MIMO, remote radio units)
• Data center switches and routers (e.g., 400G Ethernet)
• Wireless infrastructure (e.g., small cells, backhaul)
• Test and measurement equipment (e.g., oscilloscopes, signal generators)
• Industrial automation (e.g., PLCs, motor drives)
• Automotive ADAS (e.g., radar, lidar processing)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for LMK05318RGZT. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

LMK05318RGZT 是德州儀器（TI）推出的一款高性能時鐘生成器，專為需要超低抖動和靈活頻率合成的苛刻應用而設計。該器件採用緊湊的 48-VQFN（7x7 mm）封裝，集成兩個獨立的 PLL（每個帶有 VCO），並提供多達 15 個差分或 30 個單端時鐘輸出。支持 1 Hz 至 3.1 GHz 的頻率範圍，適用於 5G 基礎設施、數據中心和工業自動化等多種系統。

詳細技術參數

核心特性

• 超低抖動：典型值 0.1 ps RMS（12 kHz 至 20 MHz）
• 兩個獨立 PLL 帶集成 VCO
• 多達 15 個差分時鐘輸出（LVPECL、LVDS、HCSL 等）
• 支持 JESD204B SYSREF 和 SYSREF 重複
• 可編程輸出格式和幅度
• 片內非易失性存儲器用於配置存儲
• SPI/I2C 接口用於動態控制

典型應用場景

• 5G 基站（例如大規模 MIMO、遠程射頻單元）
• 數據中心交換機和路由器（例如 400G 以太網）
• 無線基礎設施（例如小基站、回傳）
• 測試和測量設備（例如示波器、信號發生器）
• 工業自動化（例如 PLC、電機驅動）
• 汽車 ADAS（例如雷達、激光雷達處理）

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 LMK05318RGZT 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
